An introduction to the lost wax casting process.
Lost wax casting, also known as investment casting or precision casting, is a manufacturing process in which a wax pattern is used to shape a disposable ceramic mold. A wax pattern is made in the exact shape of the item to be cast. This pattern is coated with a refractory ceramic material. Once the ceramic material is hardened, it is turned upside-down and heated until the wax melts and drains out. The hardened ceramic shell becomes an expendable investment mold. Molten metal is poured into the mold and is left to cool. The metal casting is then broken from of the spent mold.
The term investment casting is derived from the process of “investing” (surrounding) a pattern with refractory materials. Investment casting is often selected over other molding methods because the resulting castings present fine detail and excellent as-cast surface finishes. They can also be cast with thin walls and complex internal passageways. Unlike sand casting, investment casting does not require a draft.

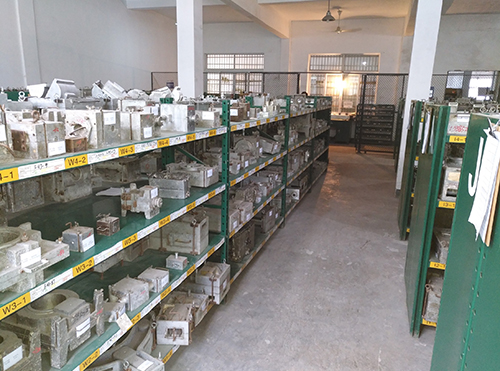

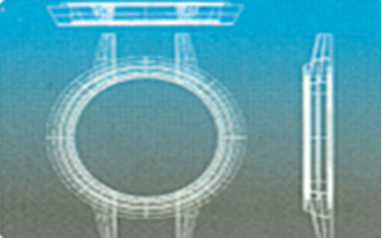

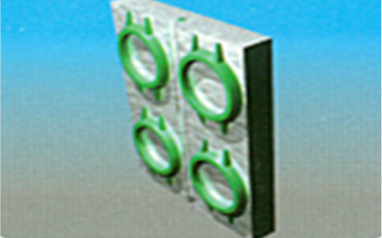

The wax pattern and ceramic mold are destroyed during the investment casting process, so each casting requires a new wax pattern. Unless investment casting is being used to produce a very small volume (as is common for artistic work or original jewelry), a mold or die from which to manufacture the wax patterns is needed.
The size of the master die must be carefully calculated; it must take into consideration expected shrinkage of the wax pattern, the expected shrinkage of the ceramic material invested over the wax pattern, and the expected shrinkage of the metal casting itself.
The number of wax patterns always equals the number of castings to be produced; each individual casting requires a new wax pattern.

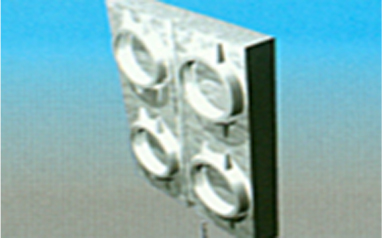

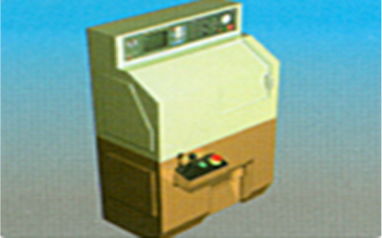

Hot wax is injected into the mold or die and allowed to solidify. Cores may be needed to form any internal features. The resulting wax pattern is an exact replica of the part to be produced. The method is similar to die-casting, but with wax used instead of molten metal.
Wax pattern of a wheel
Hot wax is injected into a mold or die and allowed to solidify, resulting in a wax pattern that is an exact replica of the part to be produced.

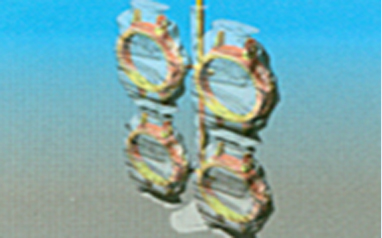

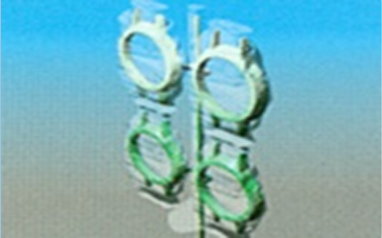

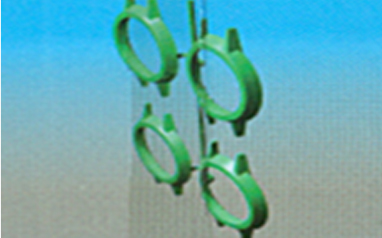

A gating system (sprue, runner bars, and risers) is attached to the wax mold. For smaller castings, several wax patterns are attached to a central wax gating system to form a tree-like assembly. A pouring cup, typically attached to the end of the runner bars, serves to introduce molten metal into the mold.

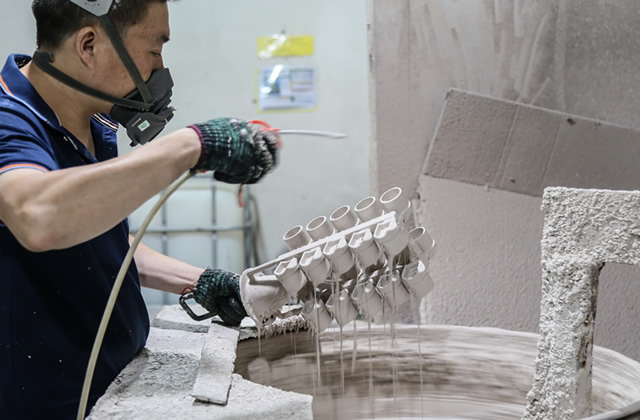

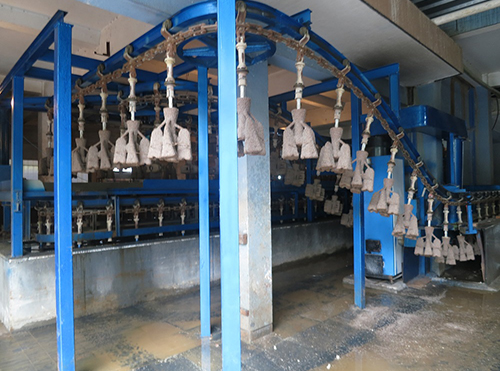

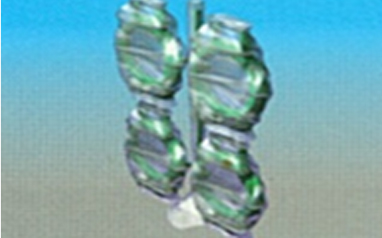

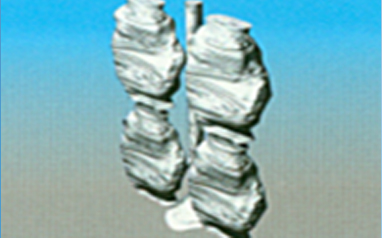

The assembled “pattern tree” is dipped into a slurry of fine-grained silica. It is dipped repeatedly, being coated with progressively more refractory slurry with each dip. Once the refractory coating reaches the desired thickness, it is allowed to dry and harden; the dried coating forms a ceramic shell around the patterns and gating system.

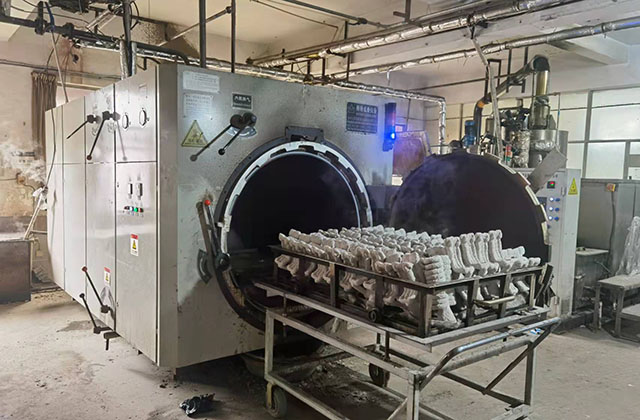

The thickness of the ceramic shell depends of the size and weight of the part being cast, and the pouring temperature of the metal being cast. The average wall thickness is approximately 0.375 in. (9.525 mm). The hardened ceramic mold is turned upside down, placed in an oven, and heated until the wax melts and drains away. The result is a hollow ceramic shell.

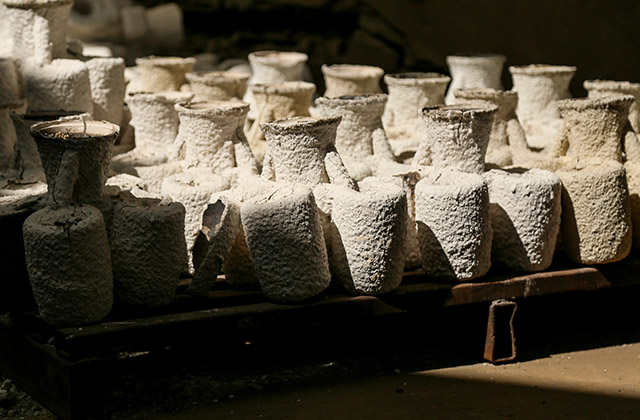

Numerous ceramic molds used in investment casting Once the coating of slurry reaches the desired thickness, it is left to dry and harden, forming a ceramic shell around the pattern.

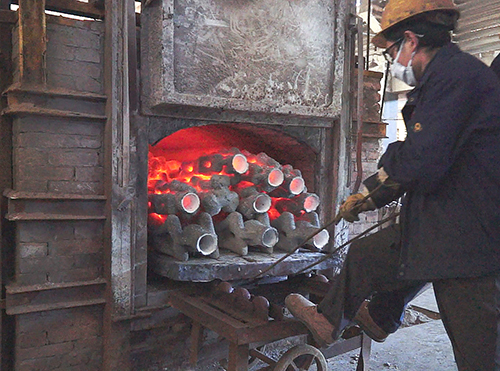

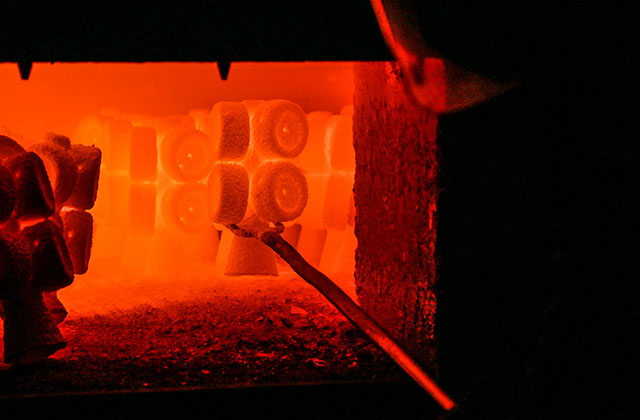

The ceramic mold is heated to around 800-900°C. The heating process further strengths the mold, eliminates any leftover wax or contaminants, and evaporates water from the mold material.

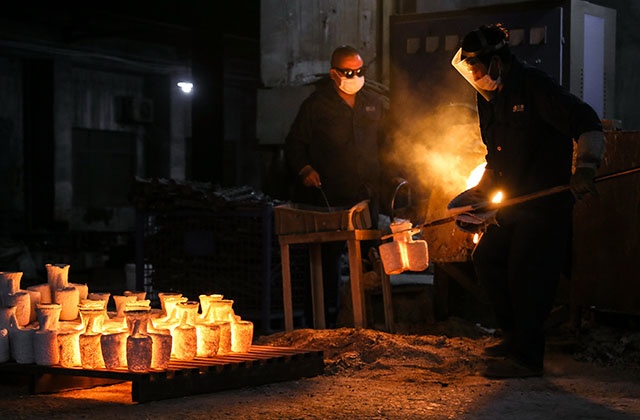

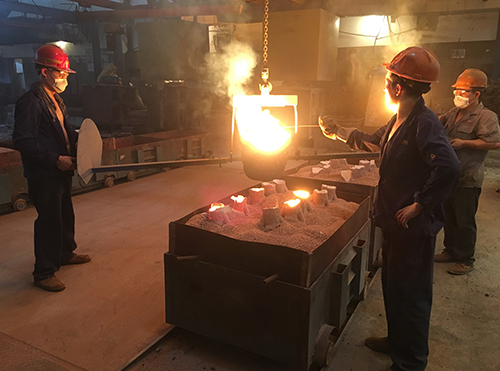

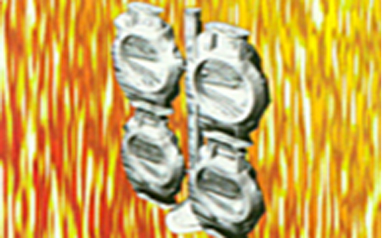

Molten metal is poured into the mold while it is still hot – liquid metal flows into the pouring cup, through the central gating system, and into each mold cavity on the tree. The pre-heated mold allows the metal to flow easily through thin, detailed sections. It also creates a casting with improved dimensional accuracy, as the mold and casting will cool and shrink together.
After the mold has been poured, the metal cools and solidifies. The time it takes for a mold to cool into a solid state depends on the material that was cast and the thickness of the casting being made.

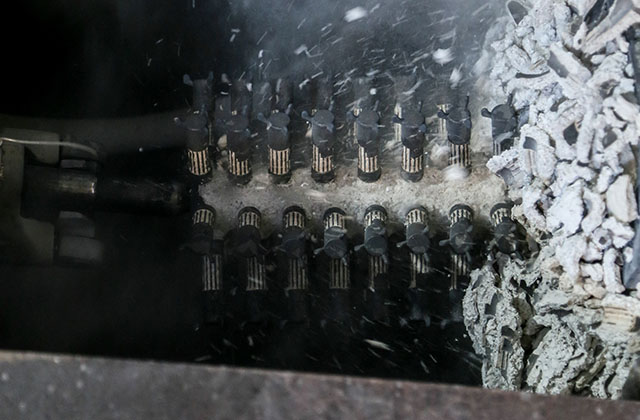

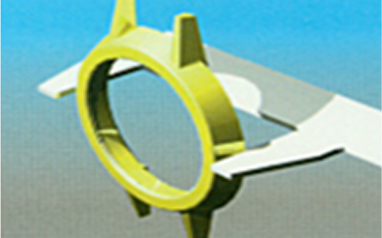

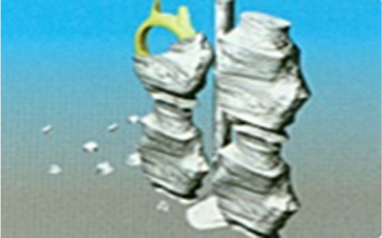

Once the casting solidifies, the ceramic molds break down, and the casting can be removed. The ceramic mold is typically broken up manually or by water jets. Once removed, the individual castings are separated from their gating system tree using manual impact, sawing, cutting, burning, or by cold breaking with liquid nitrogen.

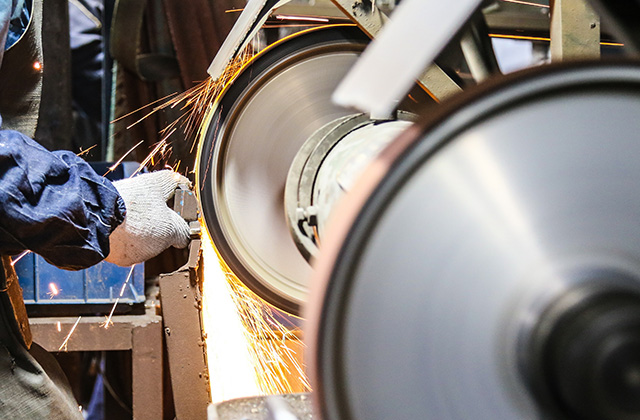

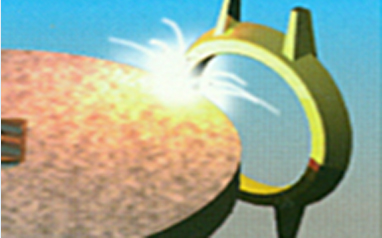

Finishing operations such as grinding or sandblasting are commonly employed to smooth the part at the gates and remove imperfections. Depending on the metal that the casting was poured from, heat treating may be employed harden the final part.
Due to its complexity and labor requirements, investment casting is a relatively expensive process – however the benefits often outweigh the cost. Practically any metal can be investment cast. Parts manufactured by investment casting are normally small, but the process can be used effectively for parts weighing 130 lbs or more.

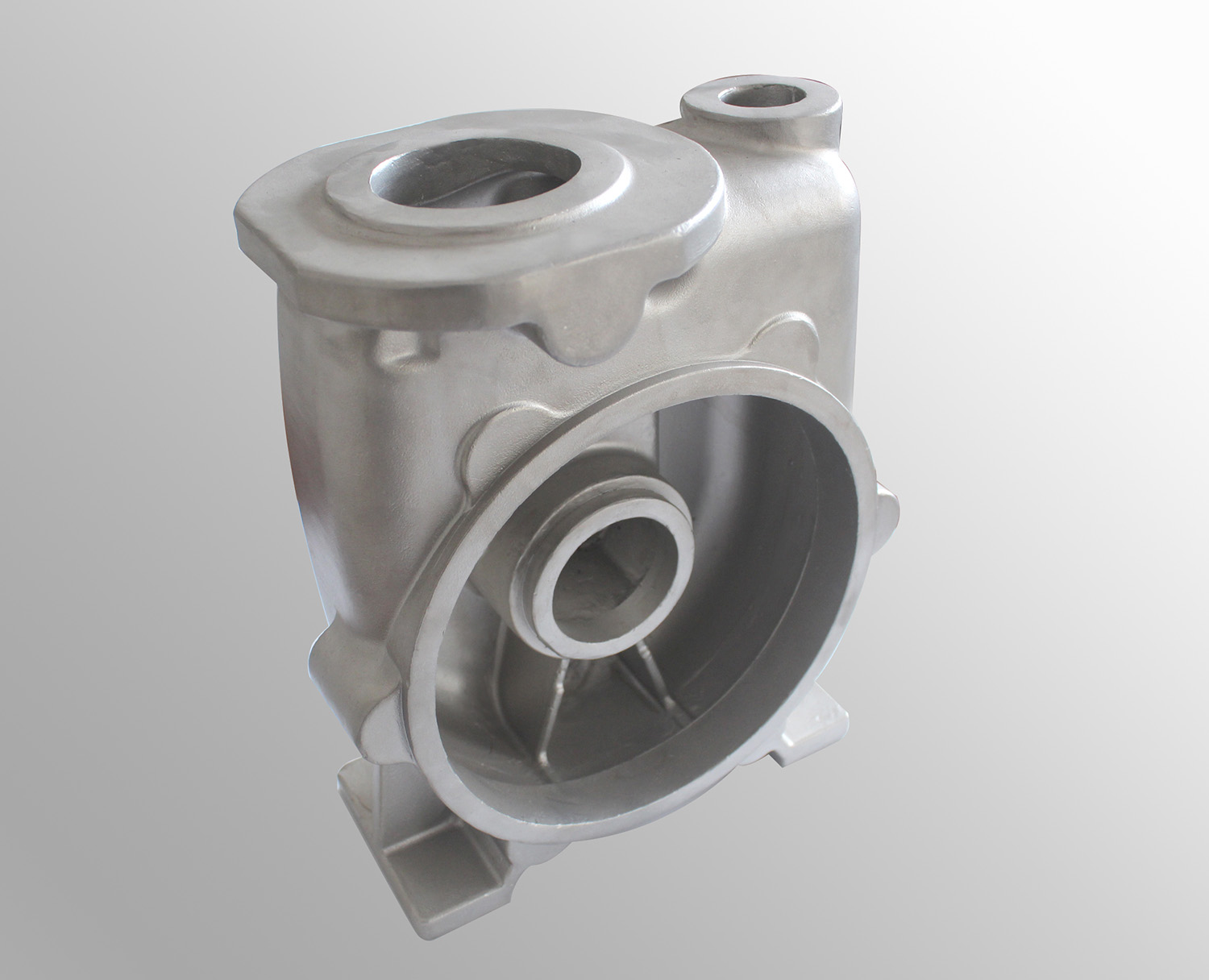

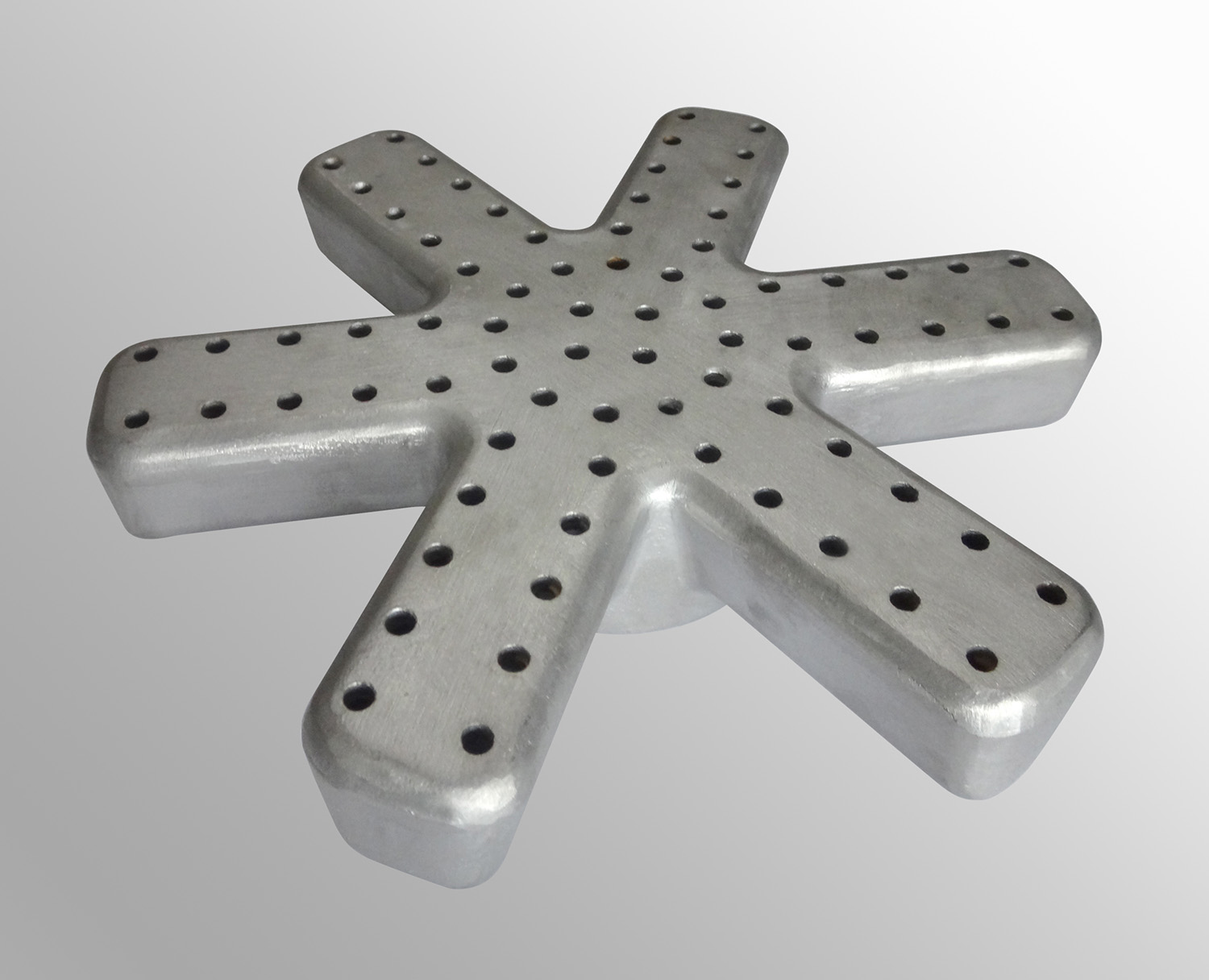

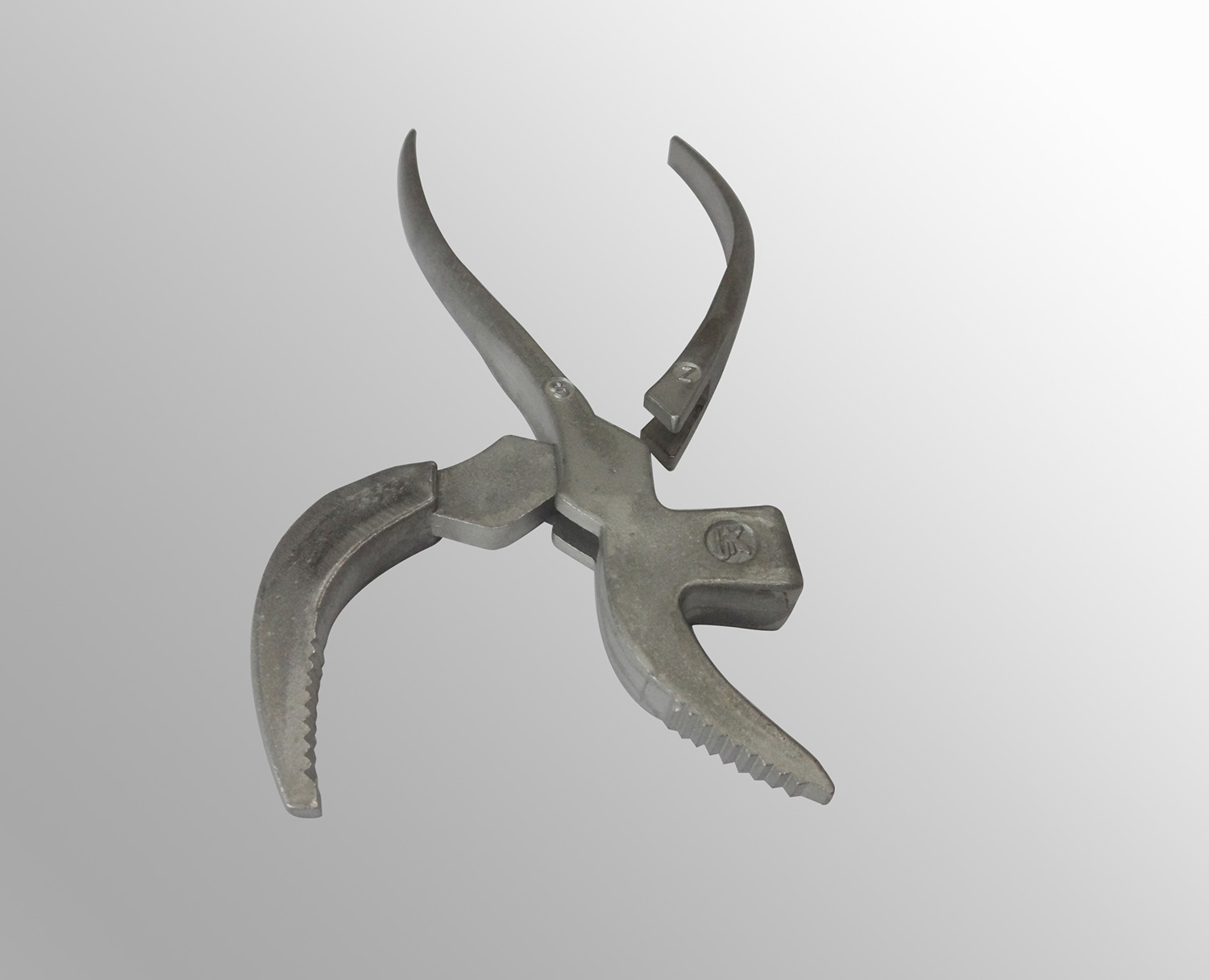

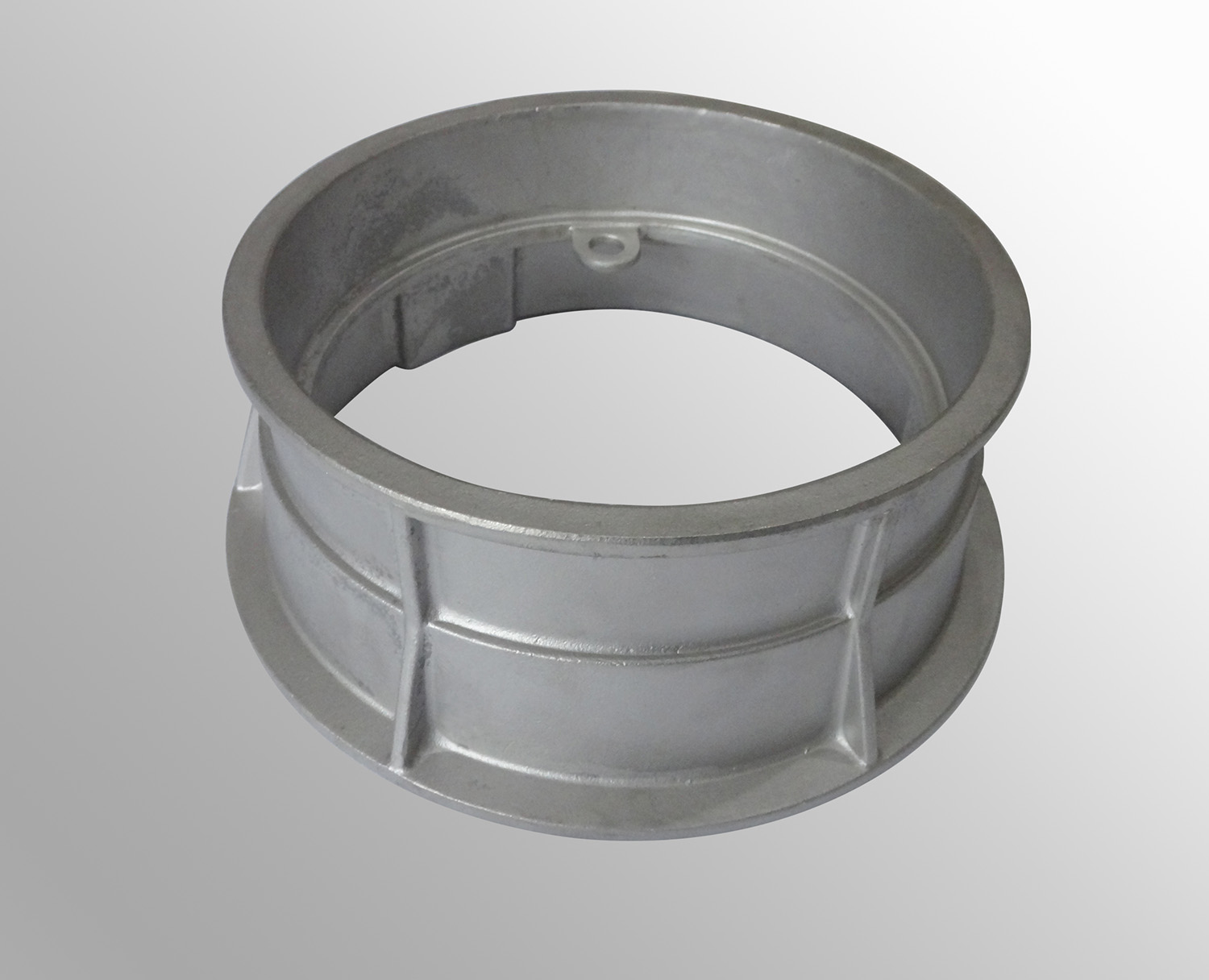

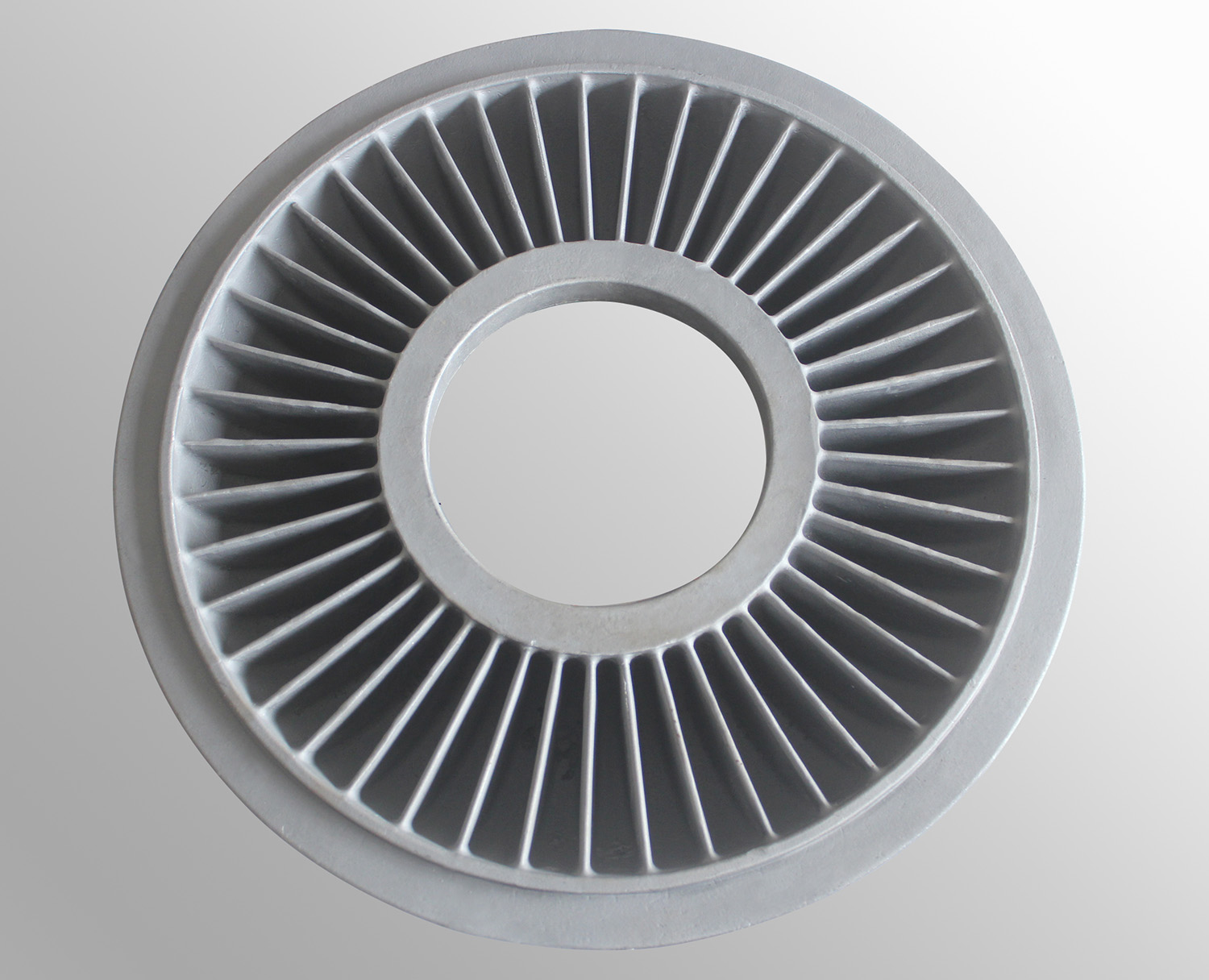

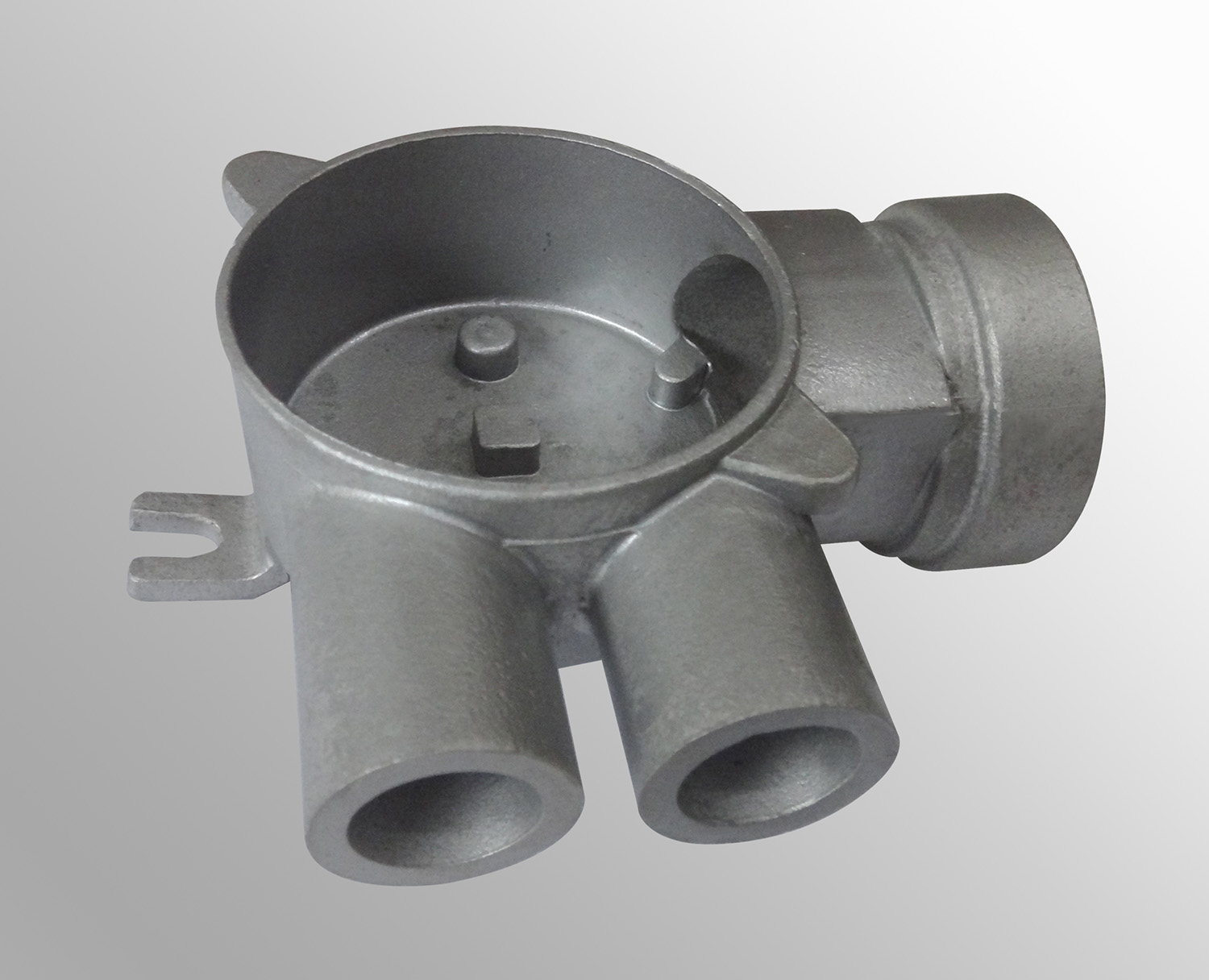

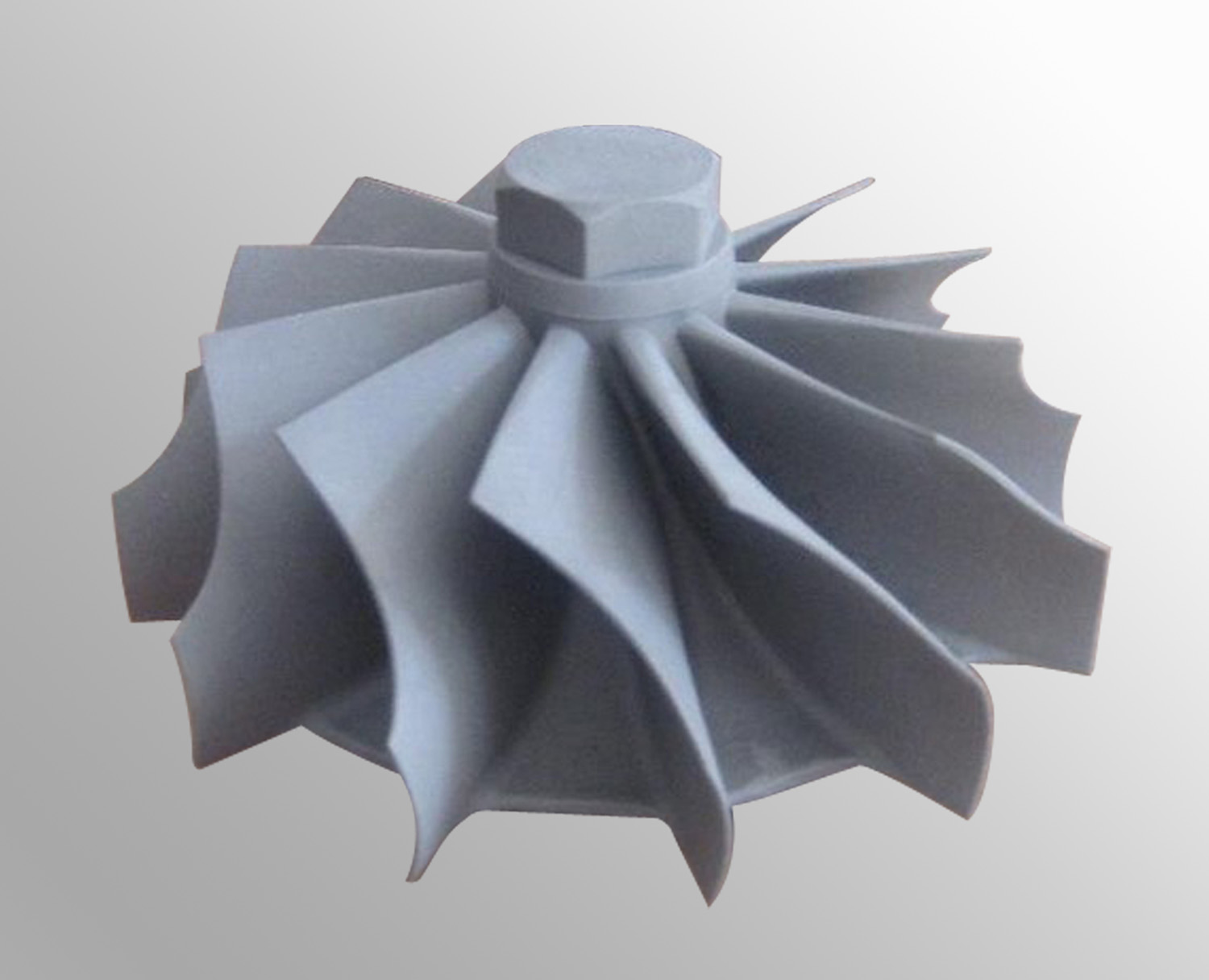

Investment casting is capable of producing complex parts with excellent as-cast surface finishes. Investment castings do not need to have taper built in to remove the components from their molds because the ceramic shells break away from the part upon cooling. This production feature allows castings with 90-degree angles to be designed with no shrinkage allowance built-in, and with no additional machining required to obtain those angles.
The investment casting process creates parts with superior dimensional accuracy; net-shape parts are easily achievable, and finished forms are often produced without secondary machining. Each unique casting run requires a new die to produce wax patterns. Tooling for investment casting can be quite cheap; depending on the complexity, tooling costs can run anywhere between $500 and $1,500.
For high volume orders, the time and labor saved by eliminating or decreasing secondary machining easily makes up for the cost of new tooling. Small casting runs are less likely to make up for the investment. Generally, investment casting is a logical choice for a run of 100 parts or more.
It usually takes 15 days to go from a fresh wax pattern to a complete casting; the majority of that time is taken up by creating and drying the ceramic shell mold. The time and labor-intensive nature of investment casting doesn’t only effect cost, so longer lead times for investment casting are common.

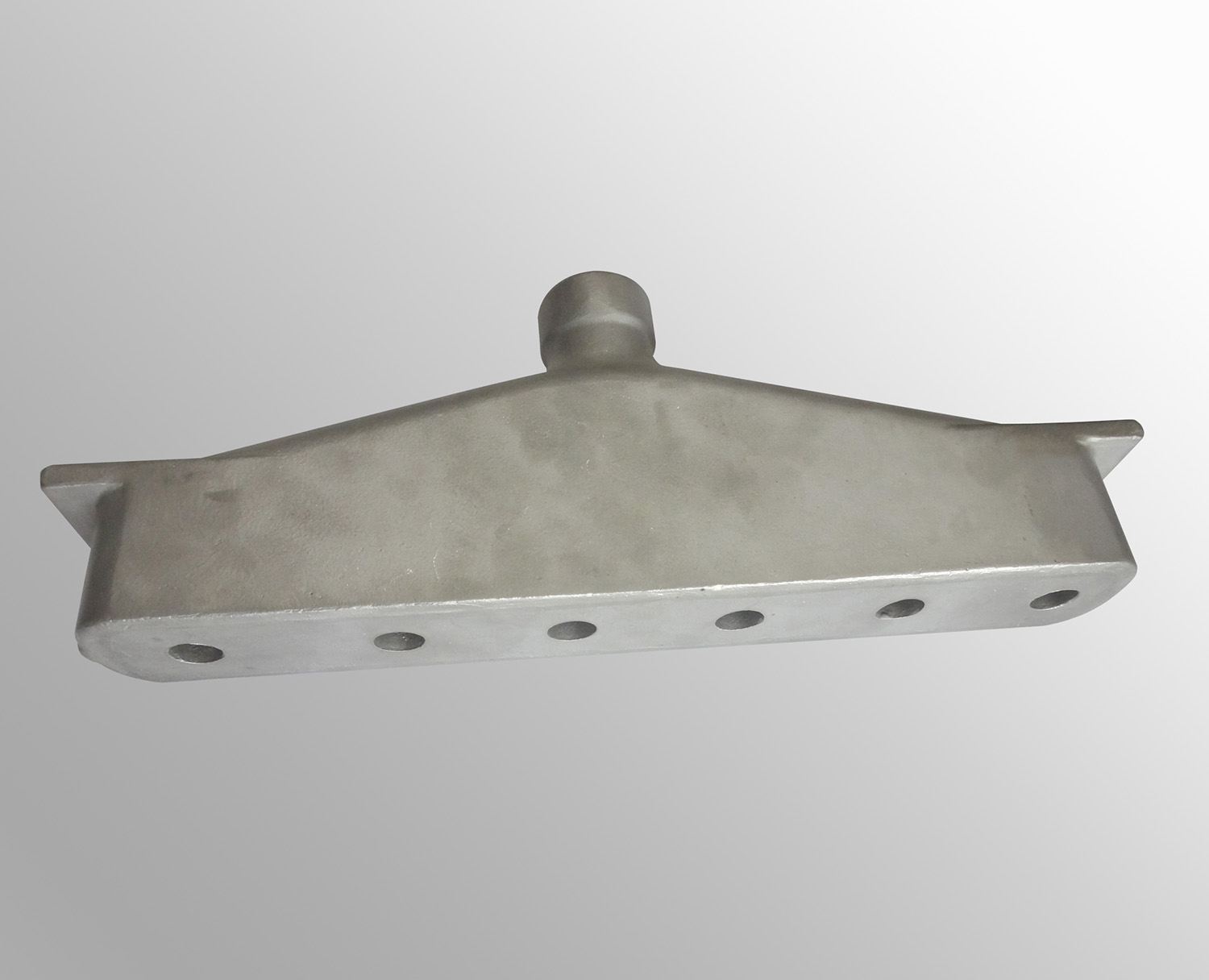

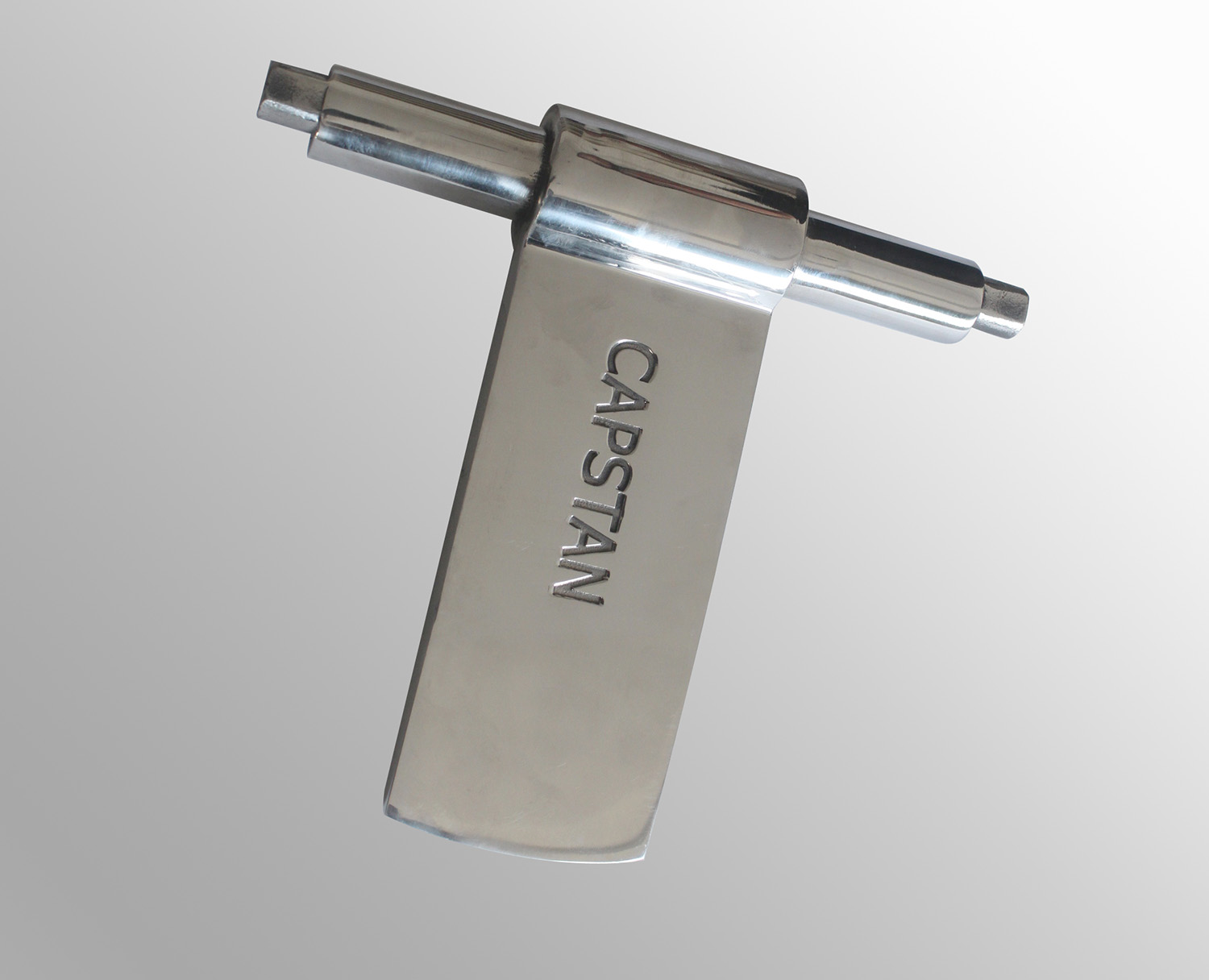

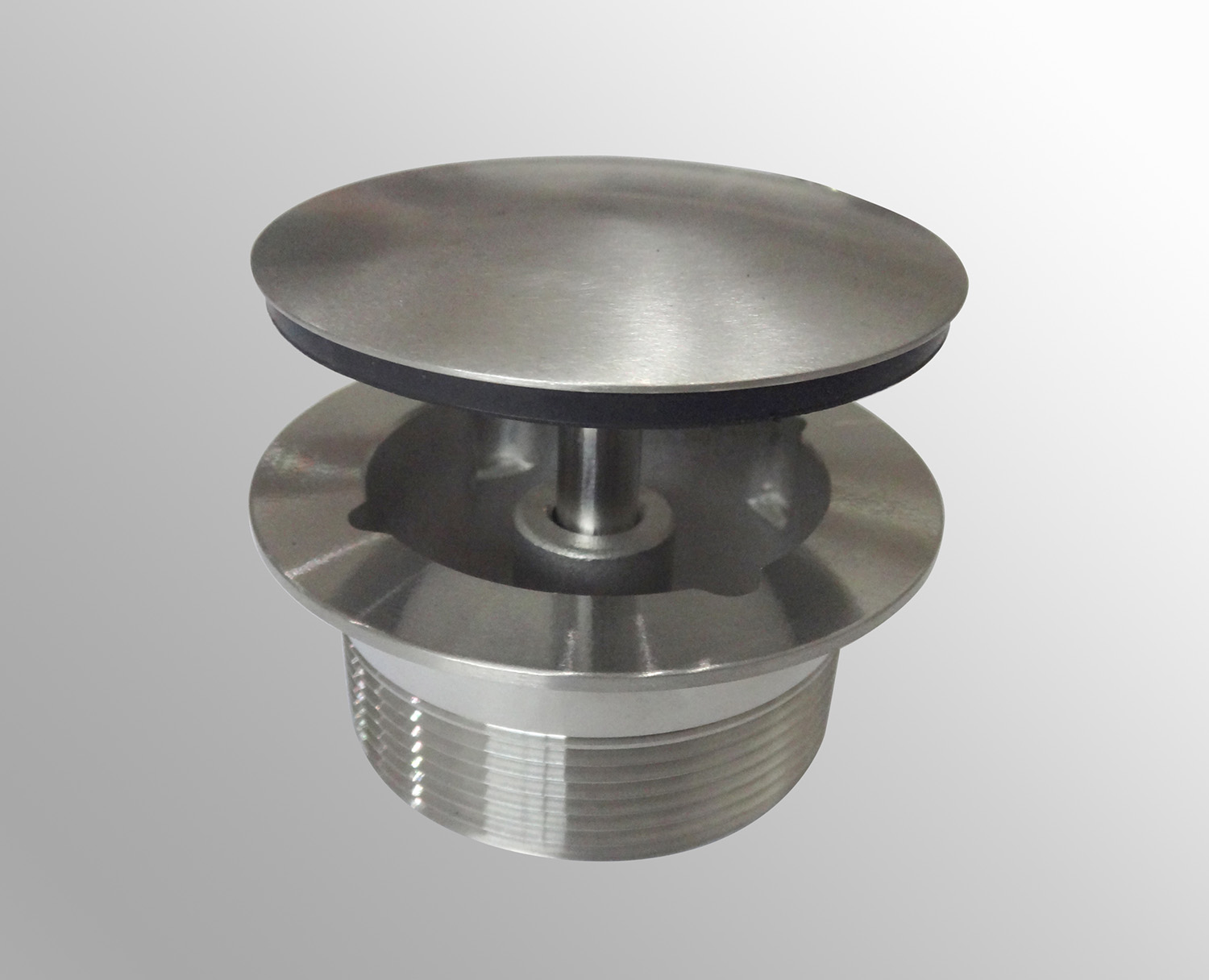

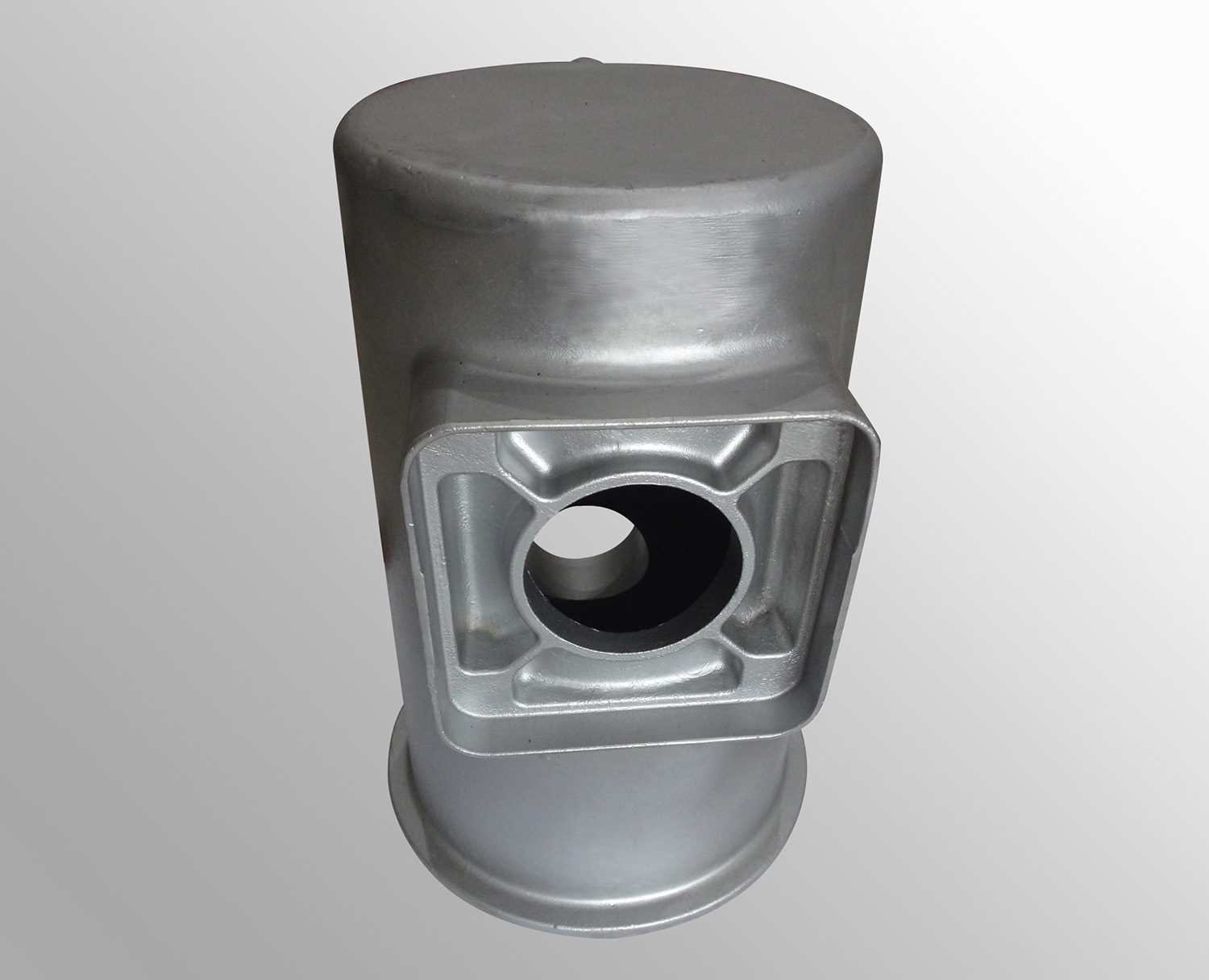

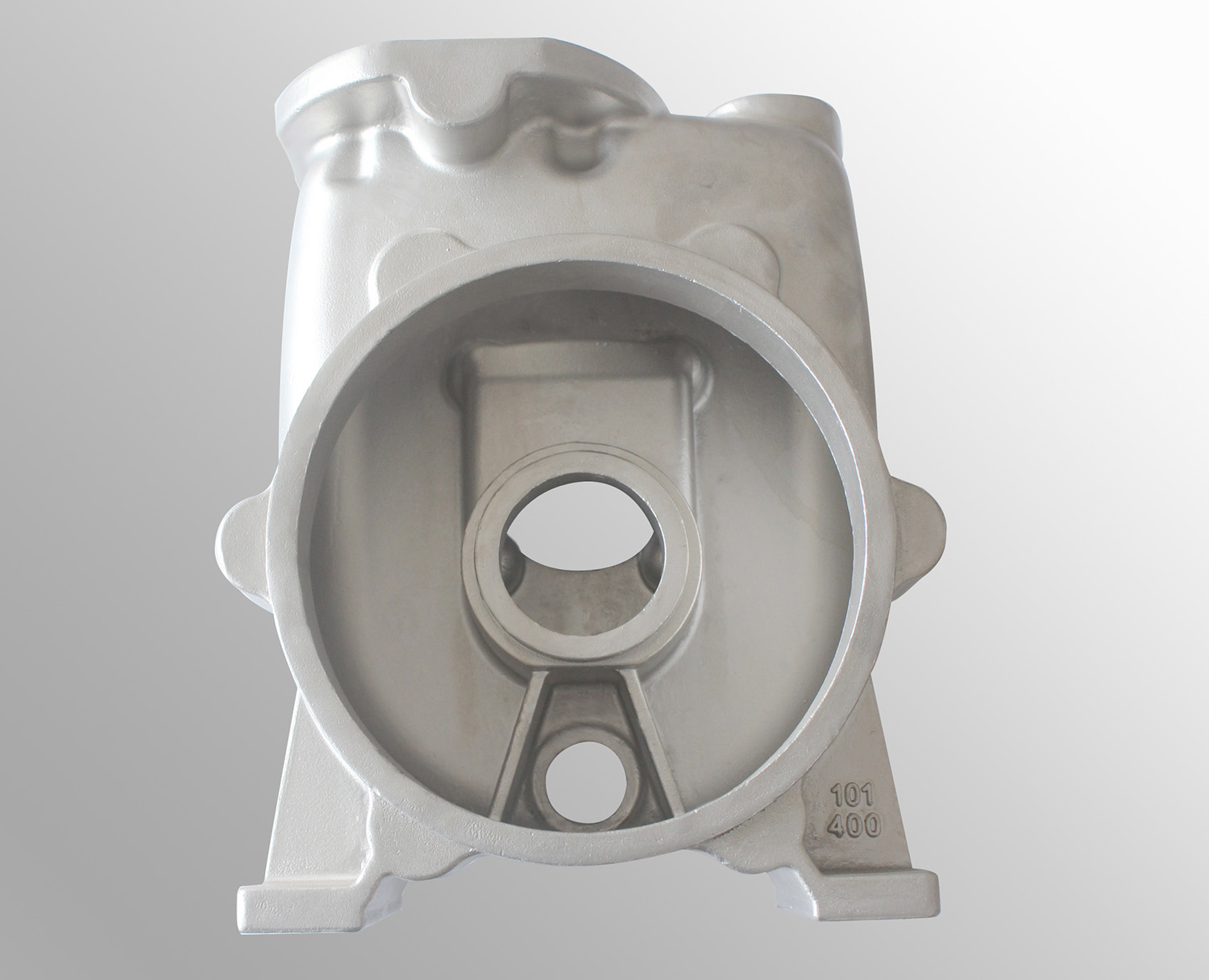

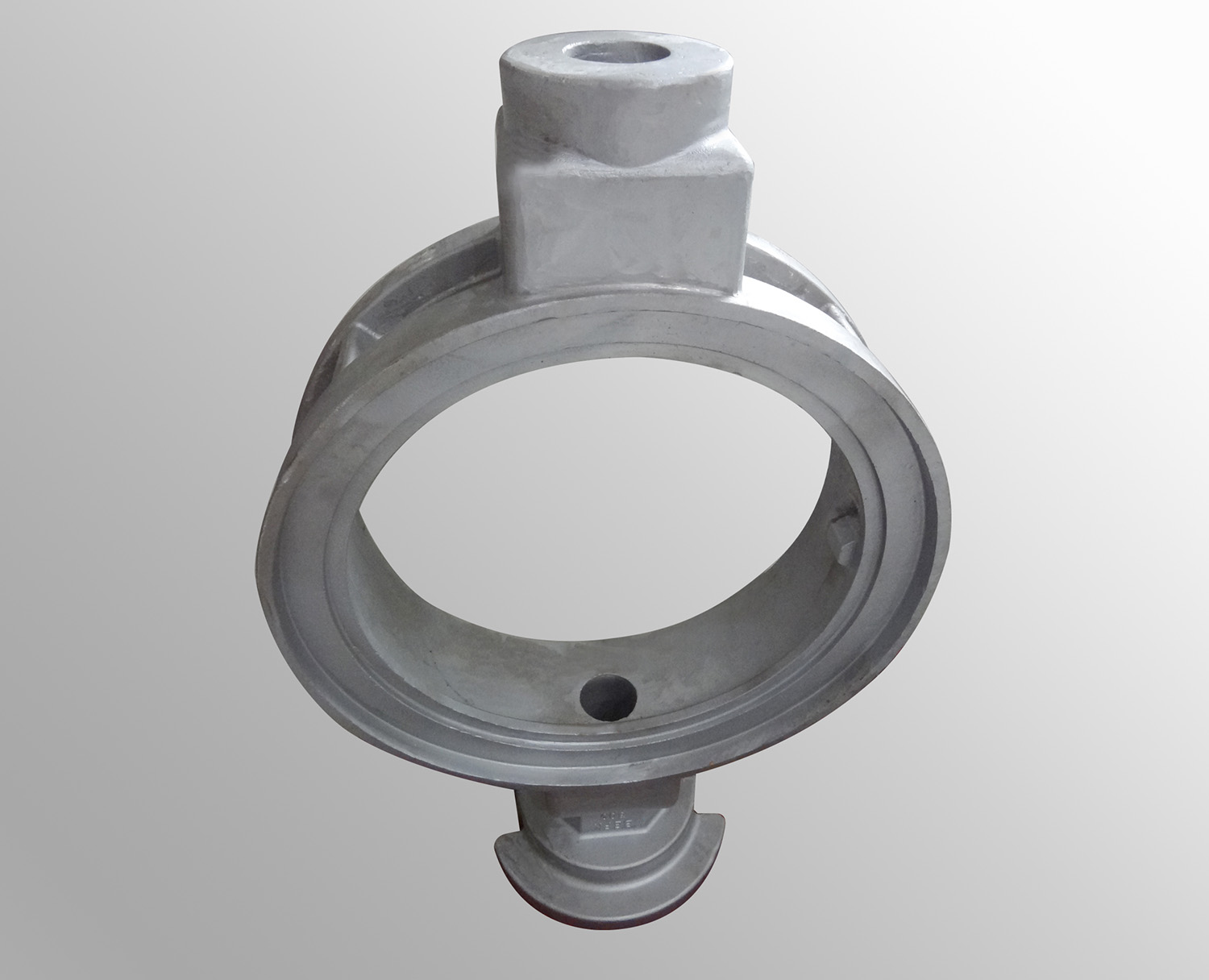

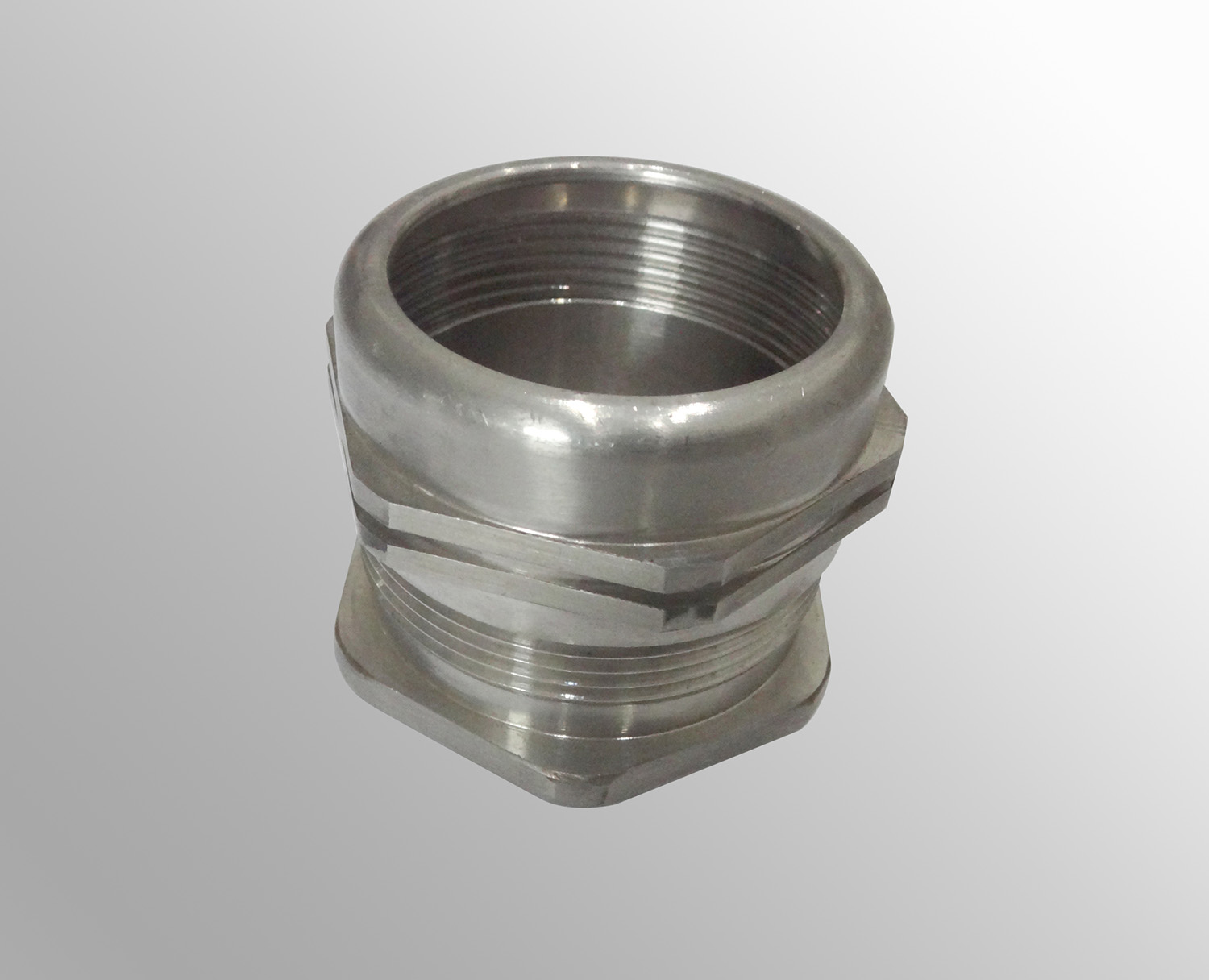

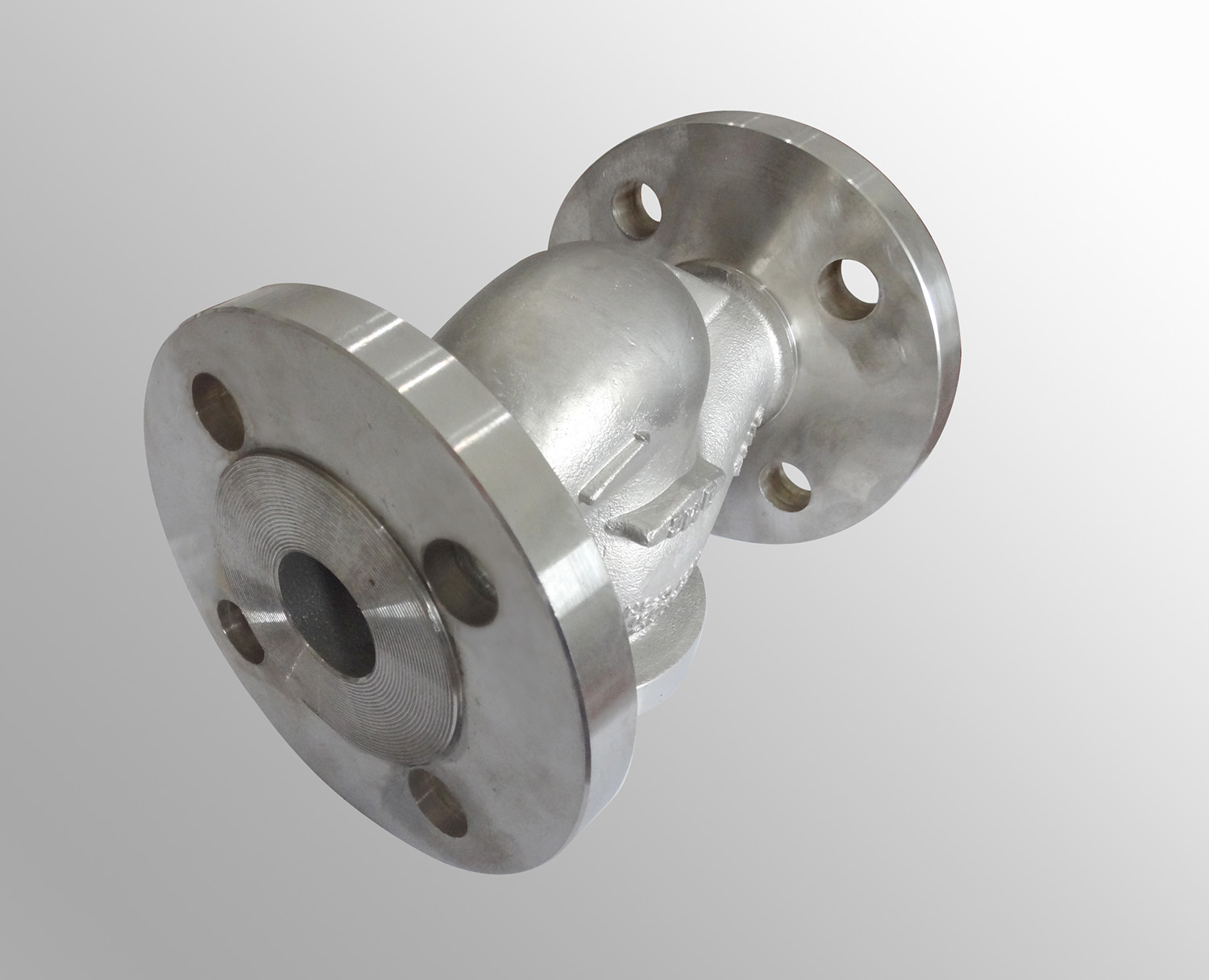

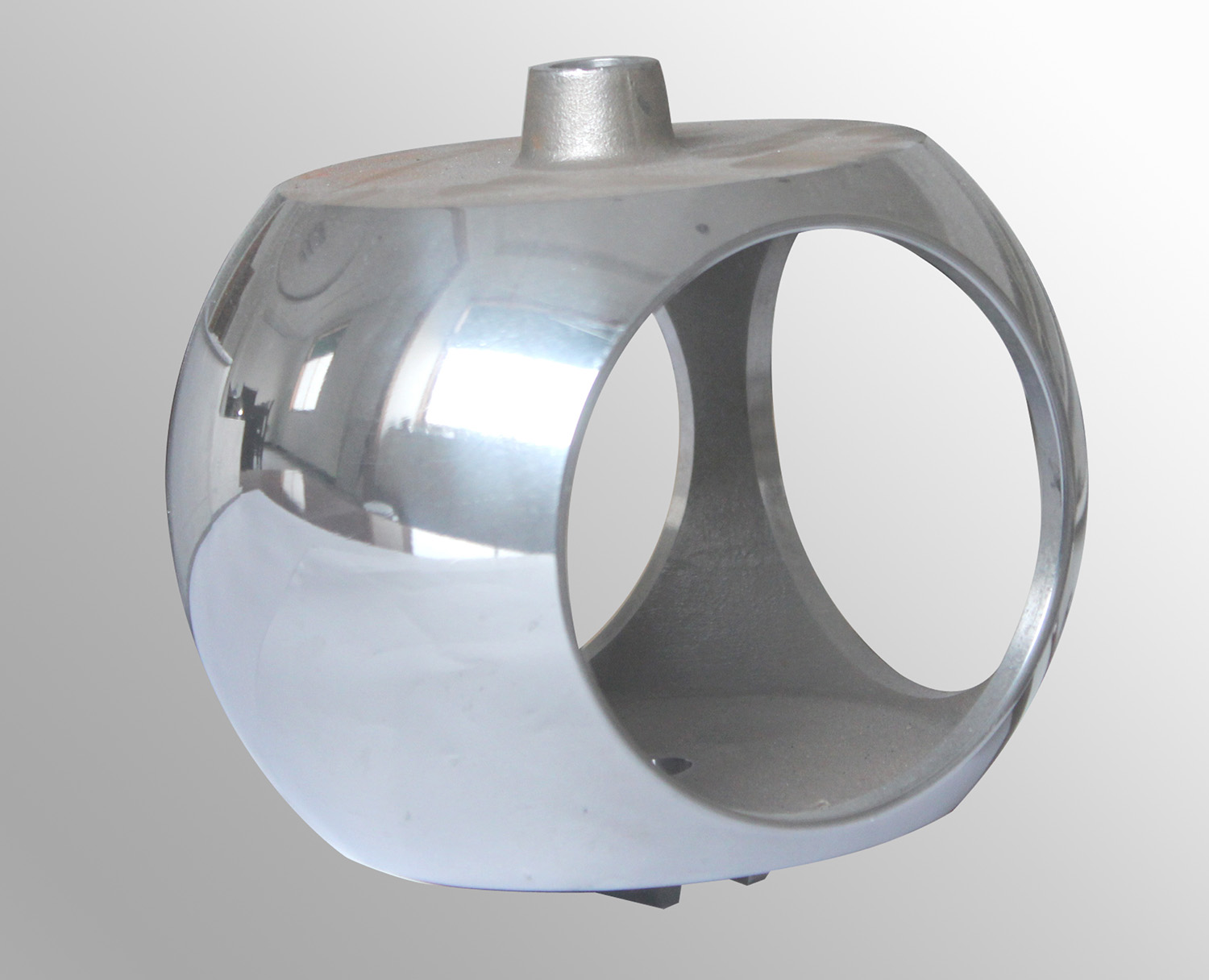

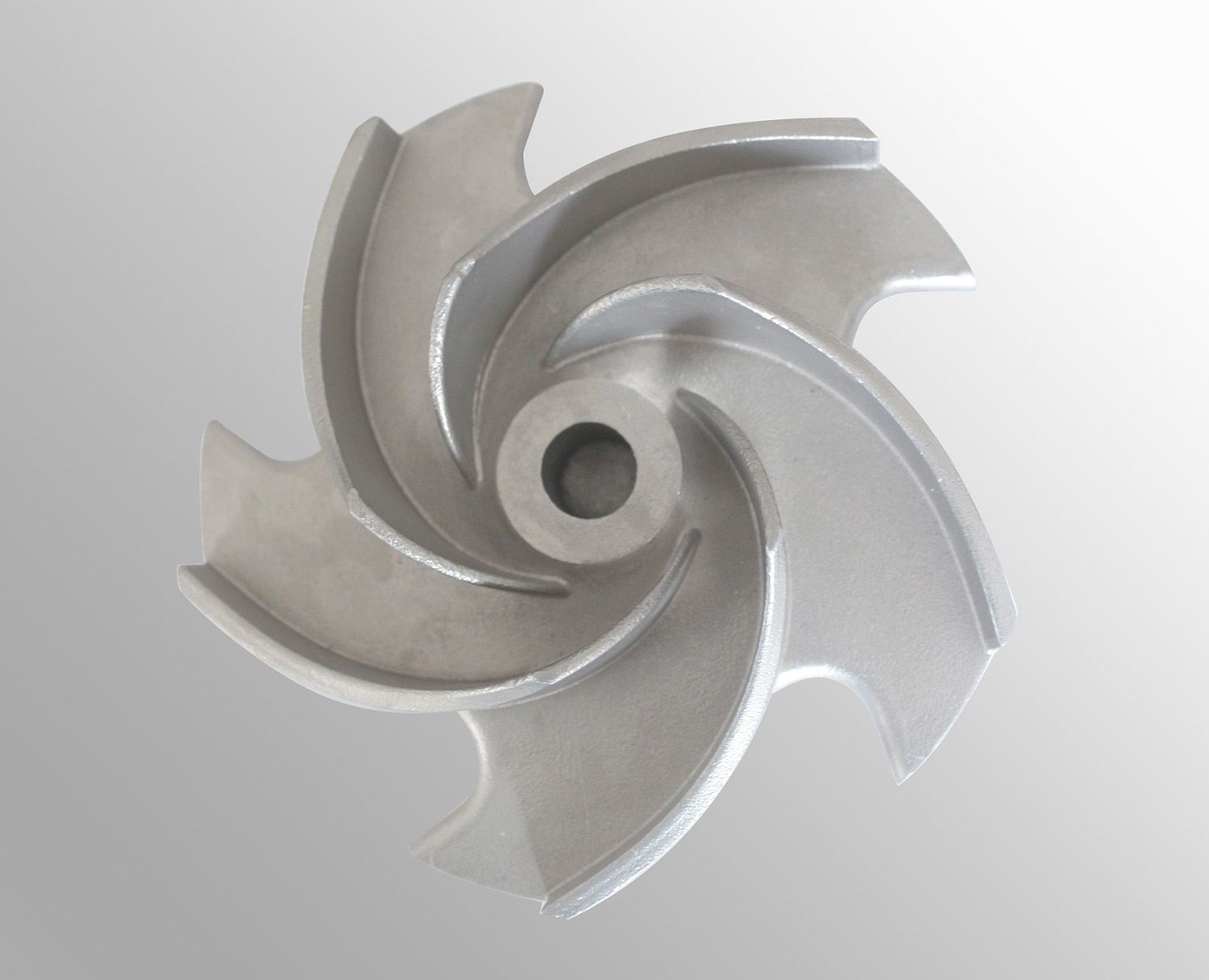

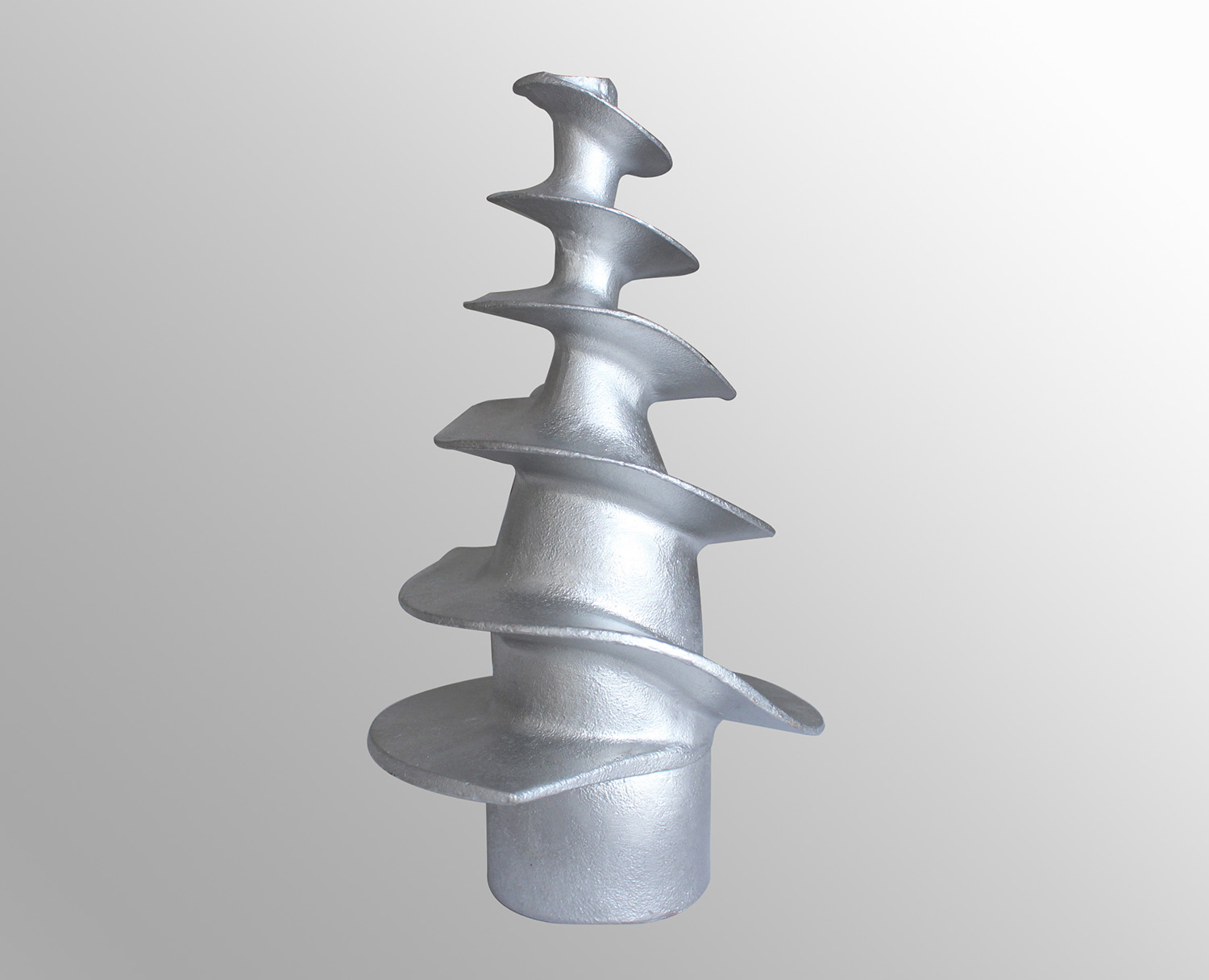

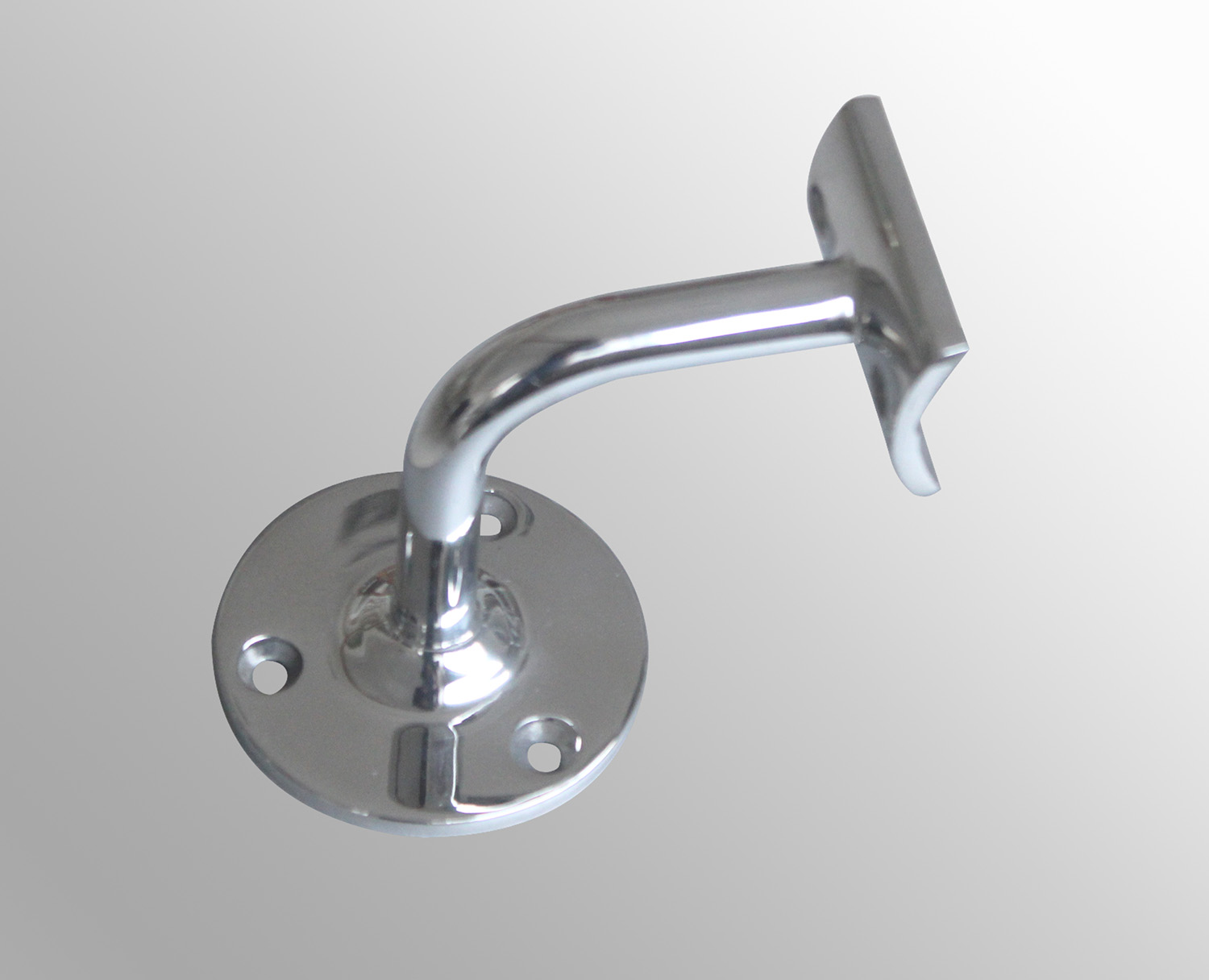

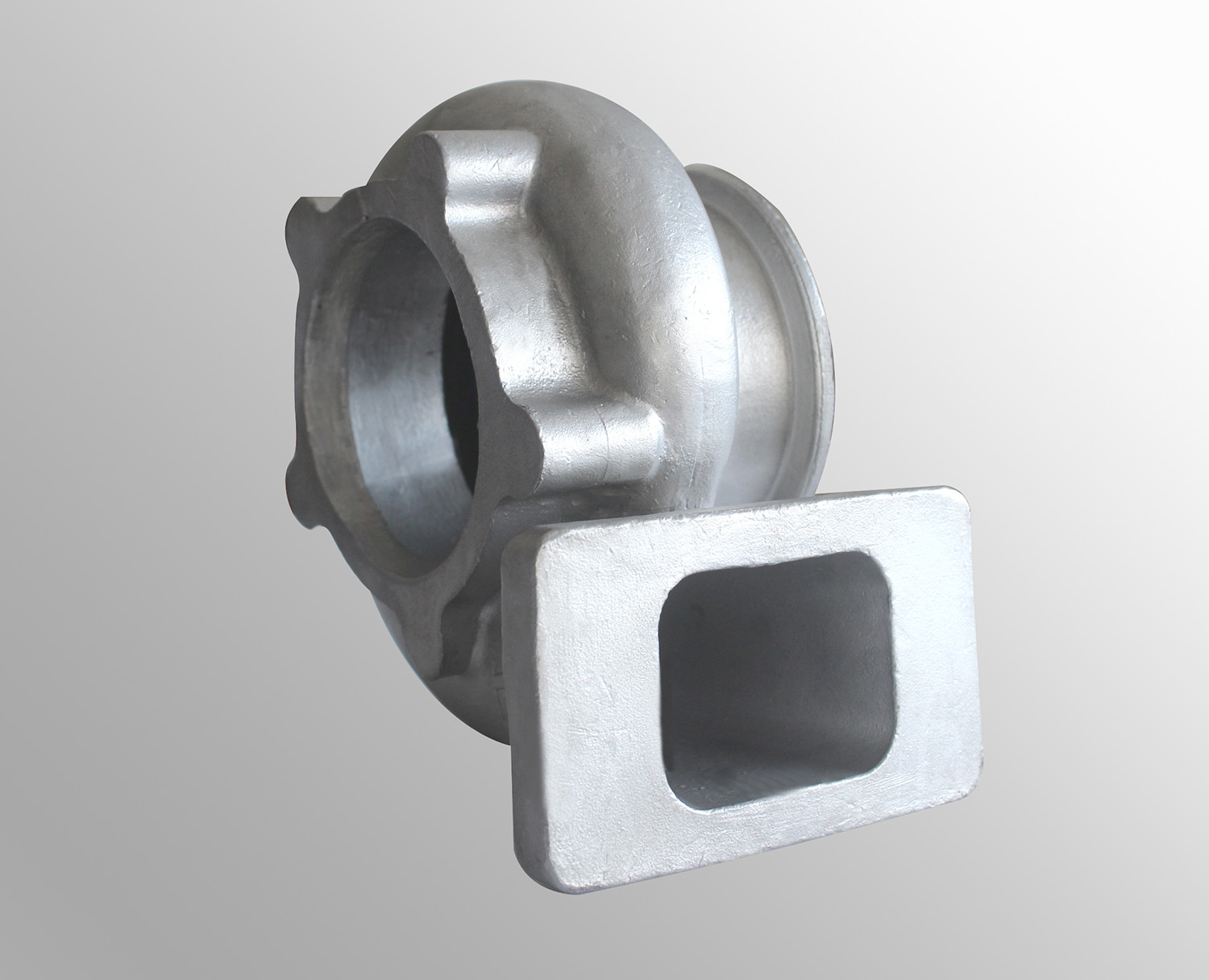

A World-Class Machined Investment Castings Manufacturer
As a global leading investment casting foundry that incorporate matchless machining capacities, Longxing is committed to manufacturing and supplying precision castings and forgings and other machined parts for a wide range of industries including automobile, rail, construction equipment, material handling equipment, and agricultural machinery.
We supply end-products to top-end markets for global customer's well-diversified requirements. By developing a key growth strategy that offers one-stop total solution and services which integrates sheet metal, welding, surface treatment, and assembly in its components manufacturing, Longxing emerges as a leading metal forming and processing manufacturer that possesses solid comprehensive strength and unique business model.

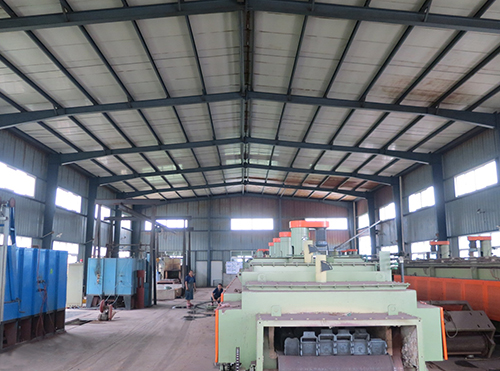

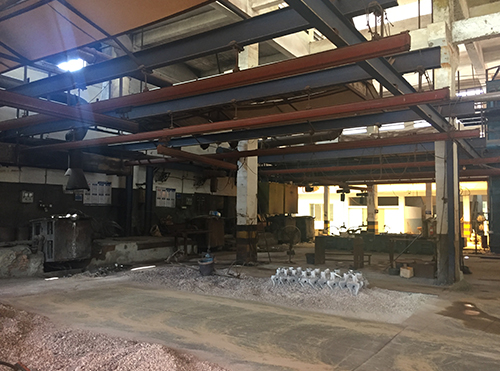

INVESTMENT CASTING FOUNDRY OVERVIEW
Utilize advanced lost wax & shell molding & lost foam casting processes
Equipped with modern energy saving and environmental friendly production lines Automatic and semi-automatic wax and shell making, pouring, heat treat equipment

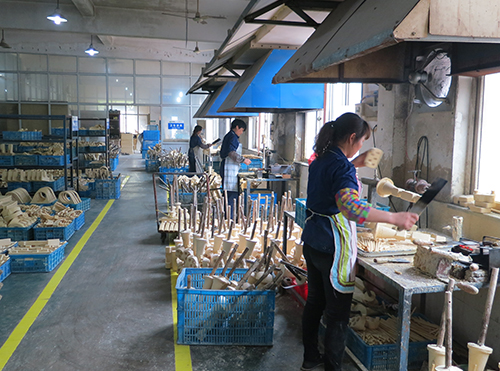

Wax Patten Assembly
Mold Shake Out

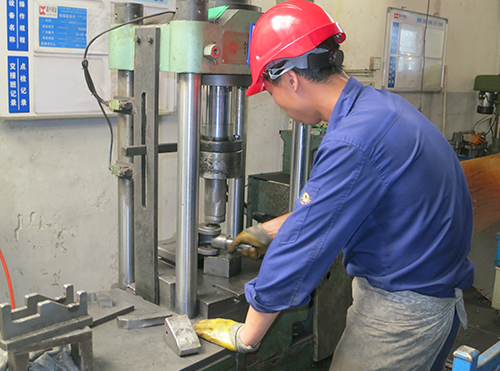

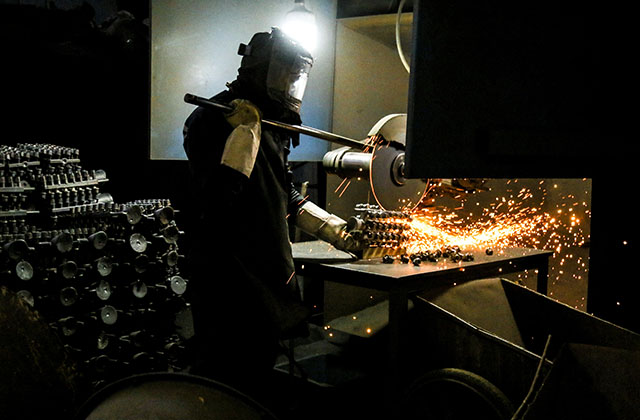

Work Plece Cut-off
Pack & Transport

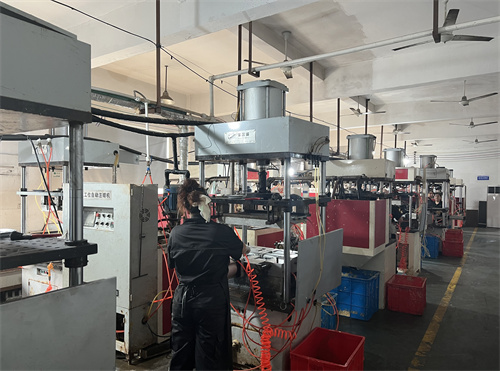

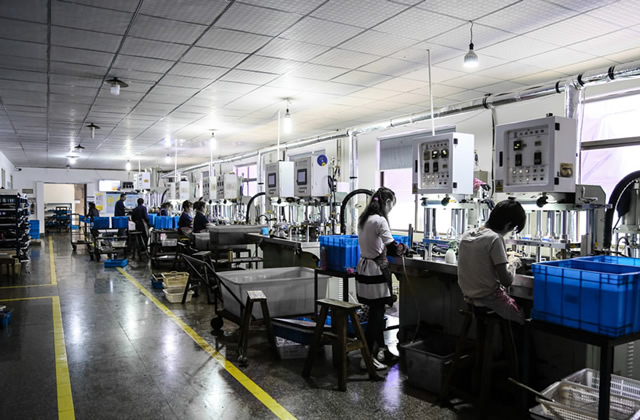

PLC Wax Pattern Making

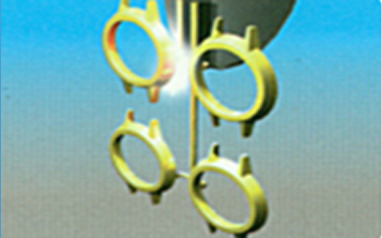

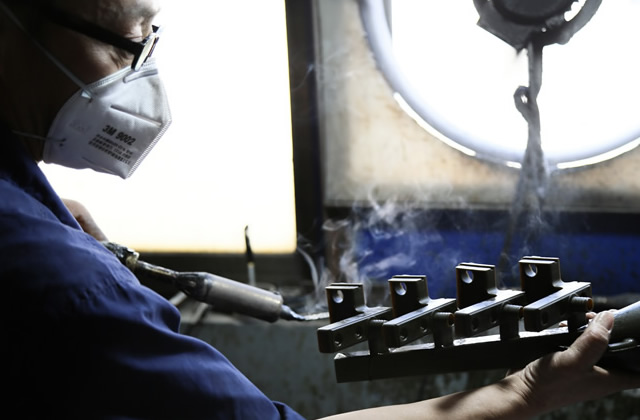

Wax Pattern Weld Assembly

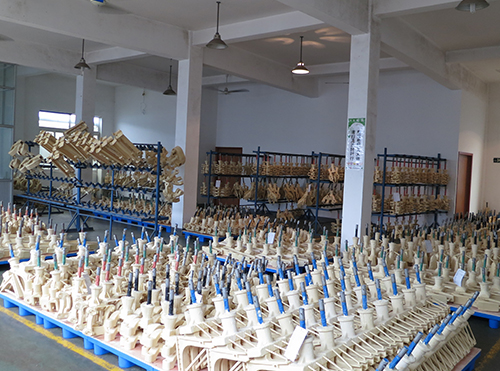

Wax Tree Storage

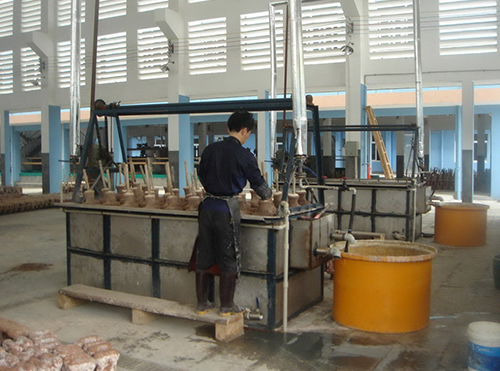

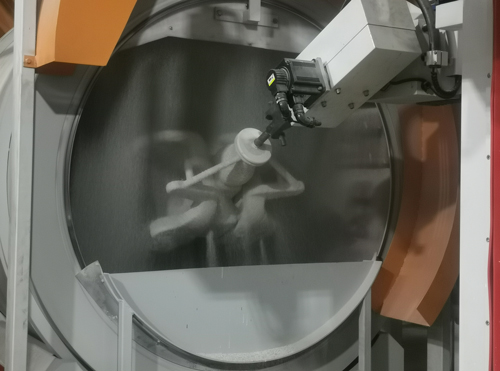

Automated Shell Making

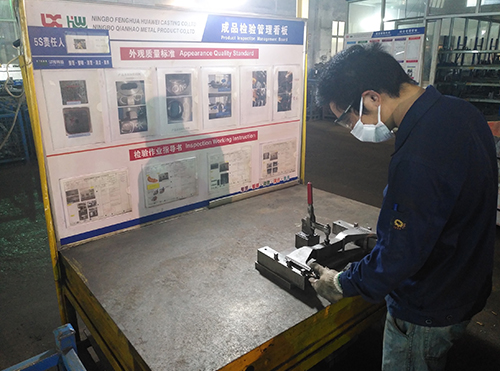

Final Quality Control Check

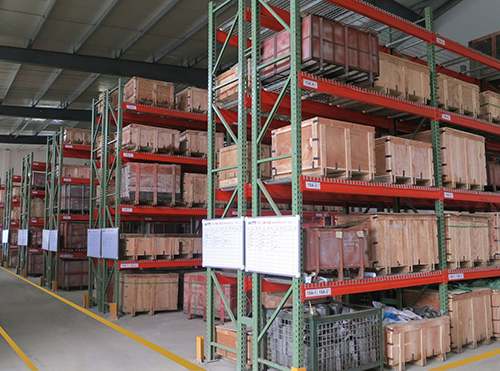

Finished Parts Storage
PLC Wax Pattern Machine

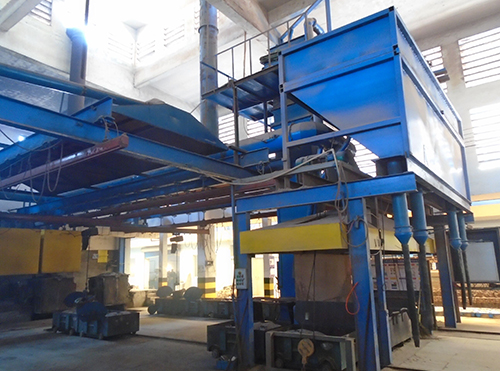

Automatic sand shooting machine

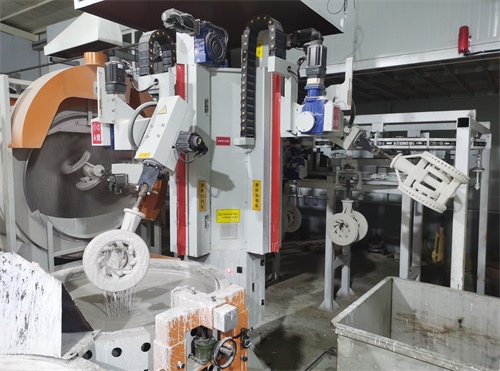

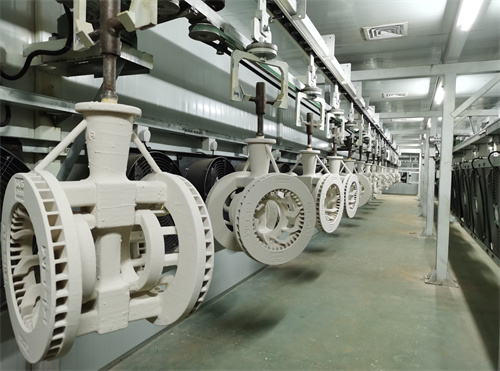

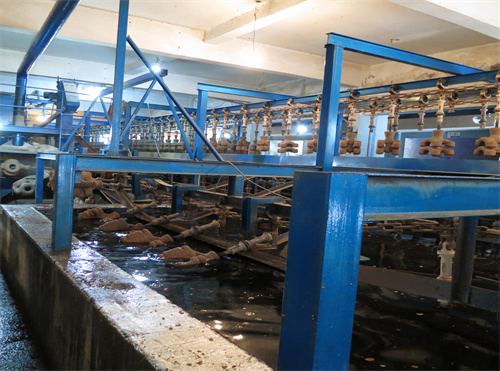

Automated Shell Making Production Line
Coreless Medium Free Inductiong Furnace
Pouring production line of shell molding

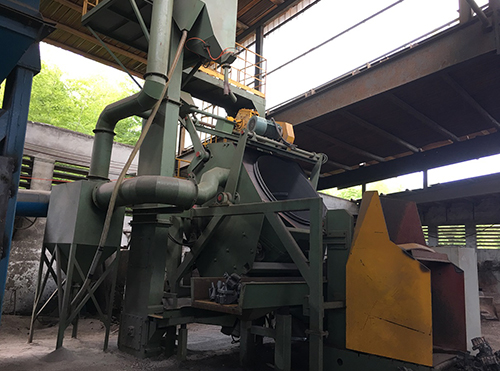

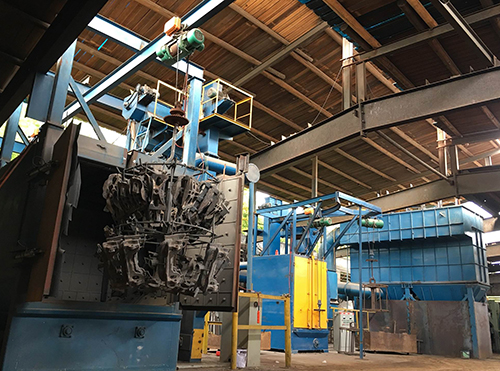

Shot Blast-Sand Cleaning

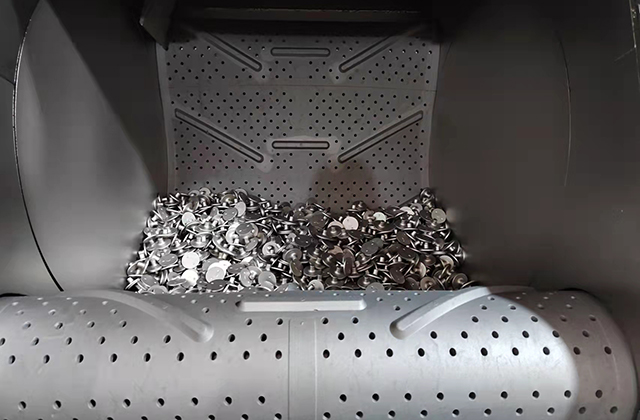

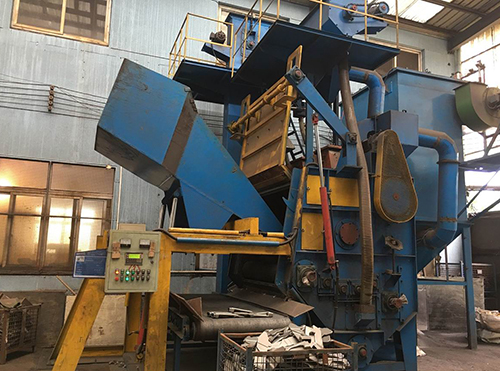

Automated Shot Blast

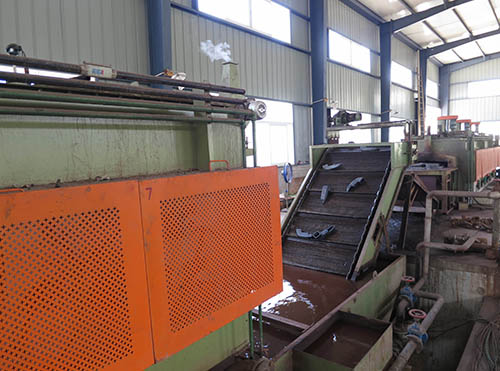

Mesh Belt HT Furnace

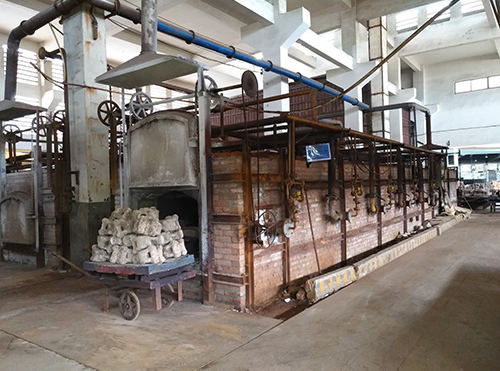

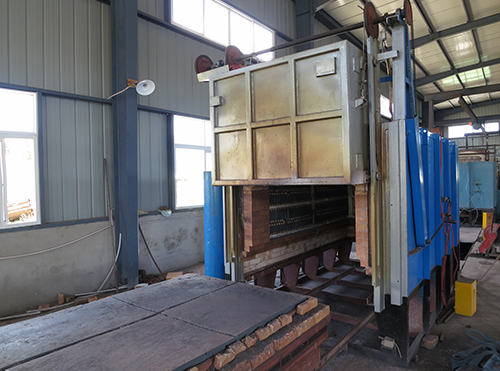

Chamber HT Furnace
ISO 9001 & IATF 16949
Silica Sol lost wax process
Annual Capacity 4,800tons
High temp nickel alloy, stainless steel, carbon & alloy steel
Max linear size - 1000mm Diameter - 600mm
Weight range - 0.01 - 100KG
Tolerance - CT5 - 6
Surface roughness - Ra 3.2 - 6.3um
Wax Pattern Making
Wax Tree Welding
Inspection & Packaging

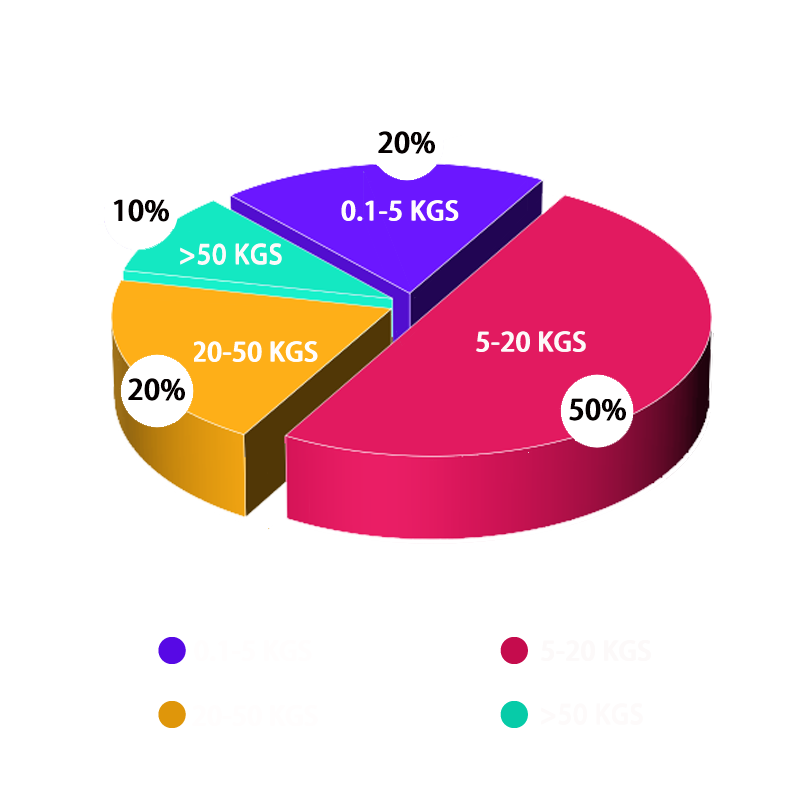

CASTING WEIGHT PROFILE

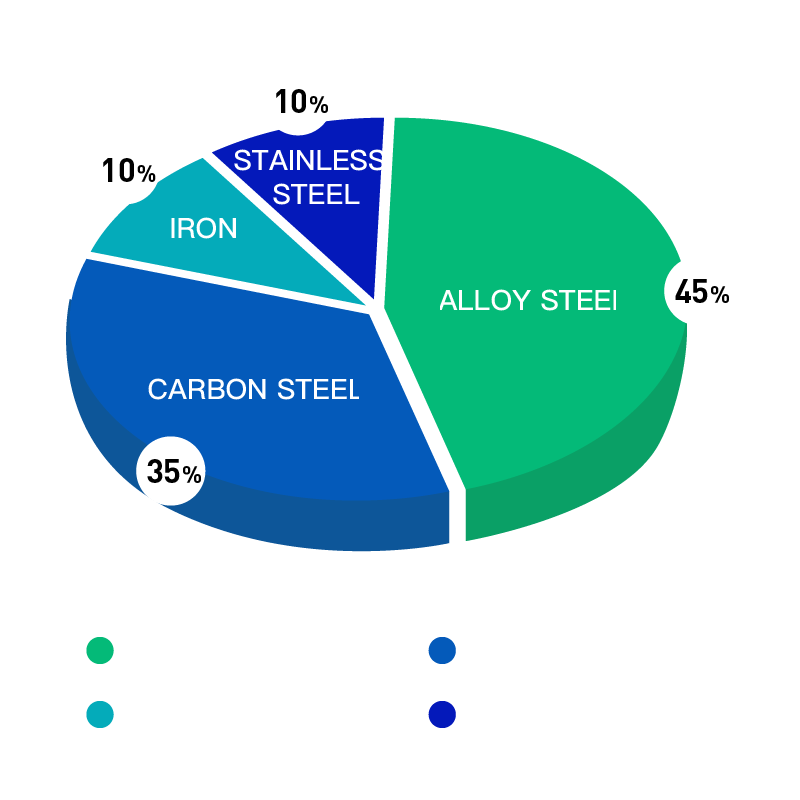

CAPACITY STRUCTURE -
LOST WAX INVESTMENT CASTING
